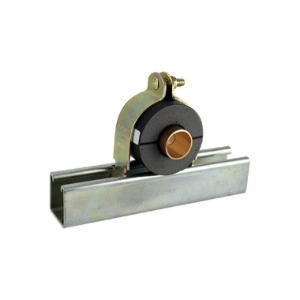

ZSI Cush-A-Therm™ Clamps - 1/2" Wall Thickness

$11.00

Complete specifying information in chart below

Part #:	Length	Copper ID	Cushion OD	Hole Size	IPS
UX1412	2.953	-	1.25	1/4 ID	-
UX3812	2.953	1/4"	1.375	3/8 ID	-
UX1212	2.953	3/8"	1.5	1/2 ID	1/4"
UX5812	2.953	1/2"	1.625	5/8 ID	3/8"
UX3412	2.953	5/8"	1.75	3/4 ID	-
UX7812	2.953	3/4"	1.875	7/8 ID	1/2"
UX11812	2.953	1"	2.125	1-1/8 ID	3/4"
UX13812	2.953	1-1/4"	2.375	1-3/8 ID	1"
UX15812	2.953	1-1/2"	2.625	1-5/8 ID	1-1/4"
UX17812	2.953	-	2.875	1-7/8 ID	-
UX21812	2.953	2"	3.125	2-1/8 ID	-
UX23812	2.953	2-1/4"	3.375	2-3/8 ID	2"
UX25812	3.937	2-1/2"	3.625	2-5/8 ID	-
UX27812	3.937	-	3.875	2-7/8 ID	2-1/2"
UX31812	3.937	3"	4.125	3-1/8 ID	-
UX31212	3.937	-	4.5	3-1/2 ID	3"
UX35812	3.937	3-1/2"	4.625	3-5/8 ID	-
UX41812	3.937	4"	5.125	4-1/8 ID	3-1/2"

ASHRAE Insulation Recommendations

Cush-A-Therm is designed to meet the ASHRAE recommendations for insulation for mechanical systems which indicate that insulated pipe hangers should provide the following:
