SafePro Ballasted Roof Guardrail Bases 100319-SP

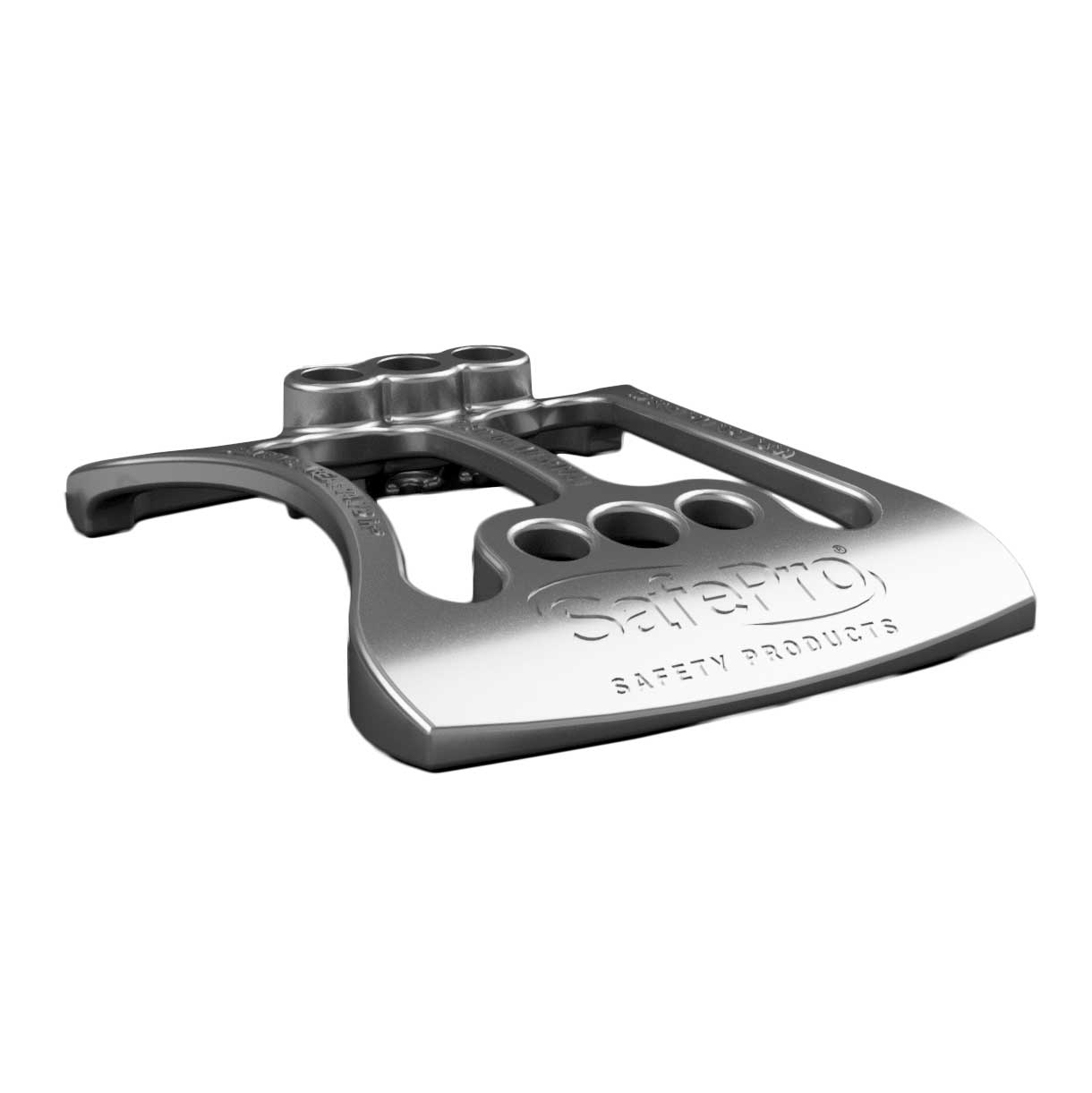

Ballasted Galvanized Steel Base Plates for the SafePro Safety Railing System

Part Number 100319-SP

Complete your SafePro roof guardrail system with weighted base plates for a non-penetrating, passive fall protection solution.

At 85  lbs each, these galvanized steel base plates feature a lightweight engineered design that prevents overturning yet is simple and fast to install — one set screw is all it takes. The SafePro roof railing system is OSHA 1910 & 1926 compliant and its ballasted design is created to handle rooftop wind loads (ASCE 7-10).

Manufactured by SafePro. Quick 2-day shipping on select products.

• 85 lbs
• Dimensions: 18" x 24" x 2.5"
• Hot dip galvanized finish
• Three receivers allow for variable vertical post connections
• Curved profile prevents water ponding
• Tapered soft edges prevent cuts and snags on roof membrane

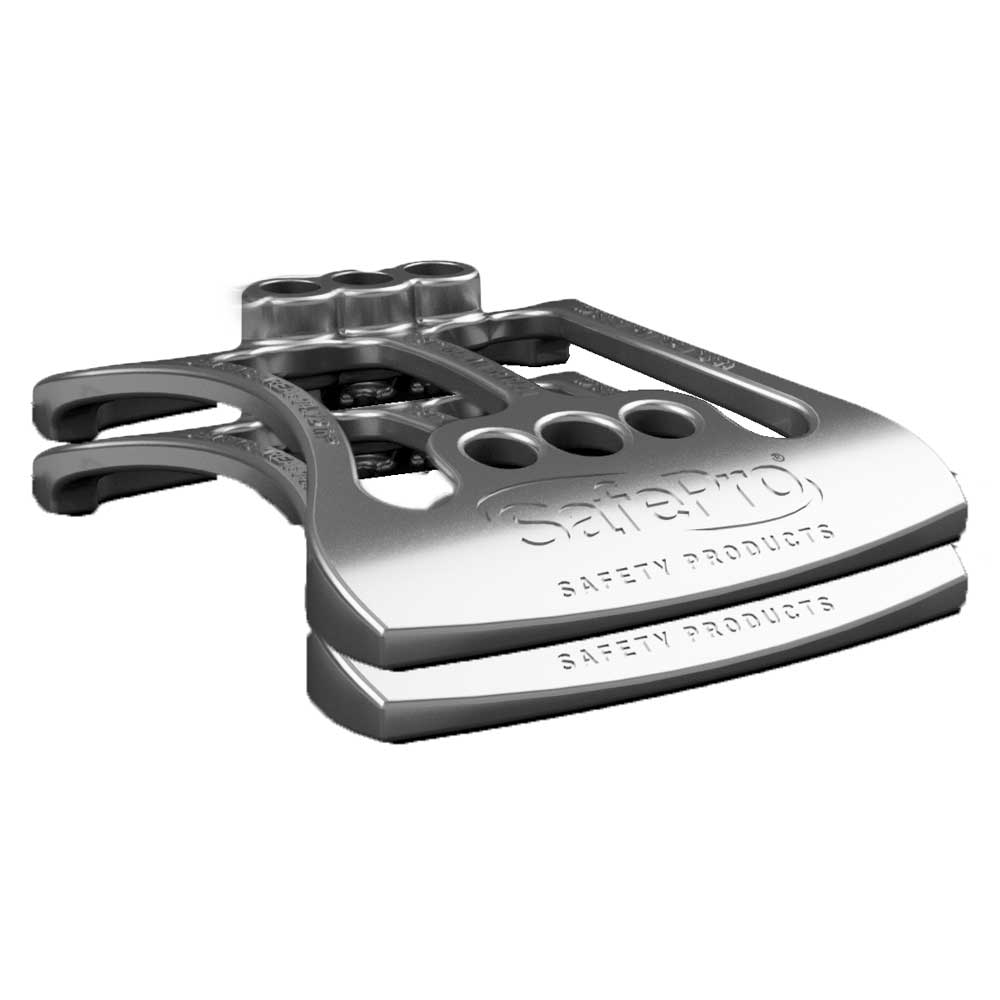

• Unique profile is easy to handle and stack

Note: We recommend rubber base pads underneath guardrail baseplates (sold separately).
