FCN

Unistrut Service Company

FCN

$0.00
Sold out
Quantity:

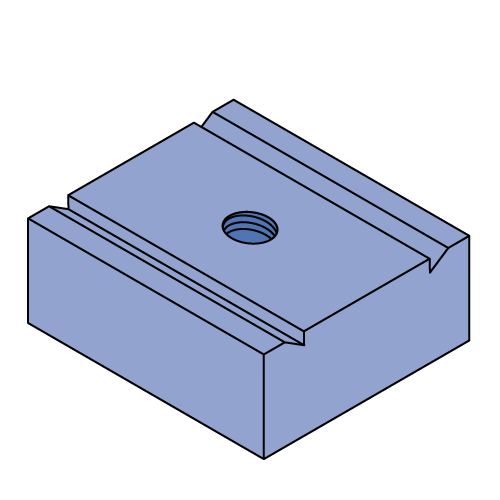

Heavy Duty Channel Nuts - 200 Series - Heavy Duty Fiberglass Channel Nuts

Part No. Thread Size Finish Product Weight / Piece (lbs)
10PU-CNMHD 10mm PU 0.058
12PU-CNMHD 12mm PU 0.055
16PU-CNMHD 16mm PU 0.053
20PU-CNMHD 20mm PU 0.044
375PU-CNHD 3/8"-16 PU 0.057
500PU-CNHD 1/2"-13 PU 0.053
625PU-CNHD 5/8"-11 PU 0.051
750PU-CNHD 3/4"-10 PU 0.044



Minimum Order Quantity May Apply-Please Consult With Sales Rep

Design Loads & Installation

Design Loads & Installation

Part Number Thread Size  Thread Shear (lbs)* Installation Torque (ft-lbs)
 10PU-CNMHD 10 mm   1,400 8
 12PU-CNMHD 12 mm  1,400 8
 16PU-CNMHD 16 mm  1,400
 10
 20PU-CNMHD 20 mm  1,400
 10
 375PU-CNHD 3/8"-16  1,400
 8
 500PU-CNHD 1/2"-13  1,400
 8
 625PU-CNHD 5/8"-11  1,400
 10
 750PU-CNHD 3/4"-10  1,400
 10

* Thread shear values shown represent a 3:1 safety factor.

General Specifications

Polyurethane
