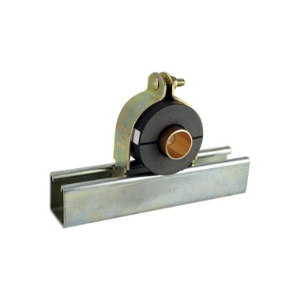

ZSI Cush-A-Therm™ Clamps - 3/4" Wall Thickness

$14.00

Complete specifying information in chart below

Part #:	Length	Copper ID	Cushion OD	Hole Size	IPS
UX11834	2.953	1"	2.625	1-1/8 ID	3/4"
UX1234	2.953	3/8"	2	1/2 ID	1/4"
UX13834	2.953	1-1/4"	2.875	1-3/8 ID	1"
UX1434	2.953	-	1.75	1/4 ID	-
UX15834	2.953	1-1/2"	3.125	1-5/8 ID	1-1/4"
UX17834	2.953	-	3.375	1-7/8 ID	-
UX21834	2.953	2"	3.625	2-1/8 ID	-
UX23834	2.953	2-1/4"	3.875	2-3/8 ID	2"
UX3434	2.953	5/8"	2.25	3/4 ID	-
UX25834	3.937	2-1/2"	4.125	2-5/8 ID	-
UX27834	3.937	-	4.375	2-7/8 ID	2-1/2"
UX31234	3.937	-	5	3-1/2 ID	3"
UX31834	3.937	3"	4.625	3-1/8 ID	-
UX3834	2.953	1/4"	1.875	3/8 ID	-
UX35834	3.937	3-1/2"	5.125	3-5/8 ID	-
UX41834	3.937	4"	5.625	4-1/8 ID	3-1/2"
UX5834	2.953	1/2"	2.125	5/8 ID	3/8"
UX7834	2.953	3/4"	2.375	7/8 ID	1/2"

ASHRAE Insulation Recommendations

Cush-A-Therm is designed to meet the ASHRAE recommendations for insulation for mechanical systems which indicate that insulated pipe hangers should provide the following:

Complete sealing of pipe against water vapor ingress
No energy transfer of cold to supporting clamp to prevent condensation of water and possible growth of mold. If the support incasing the insulation is in contact with the pipe or tube and supported by a metallic clamp, which is not protected by insulation, below ambient temperatures will be transfer to the clamp causing energy transfer and condensation.
