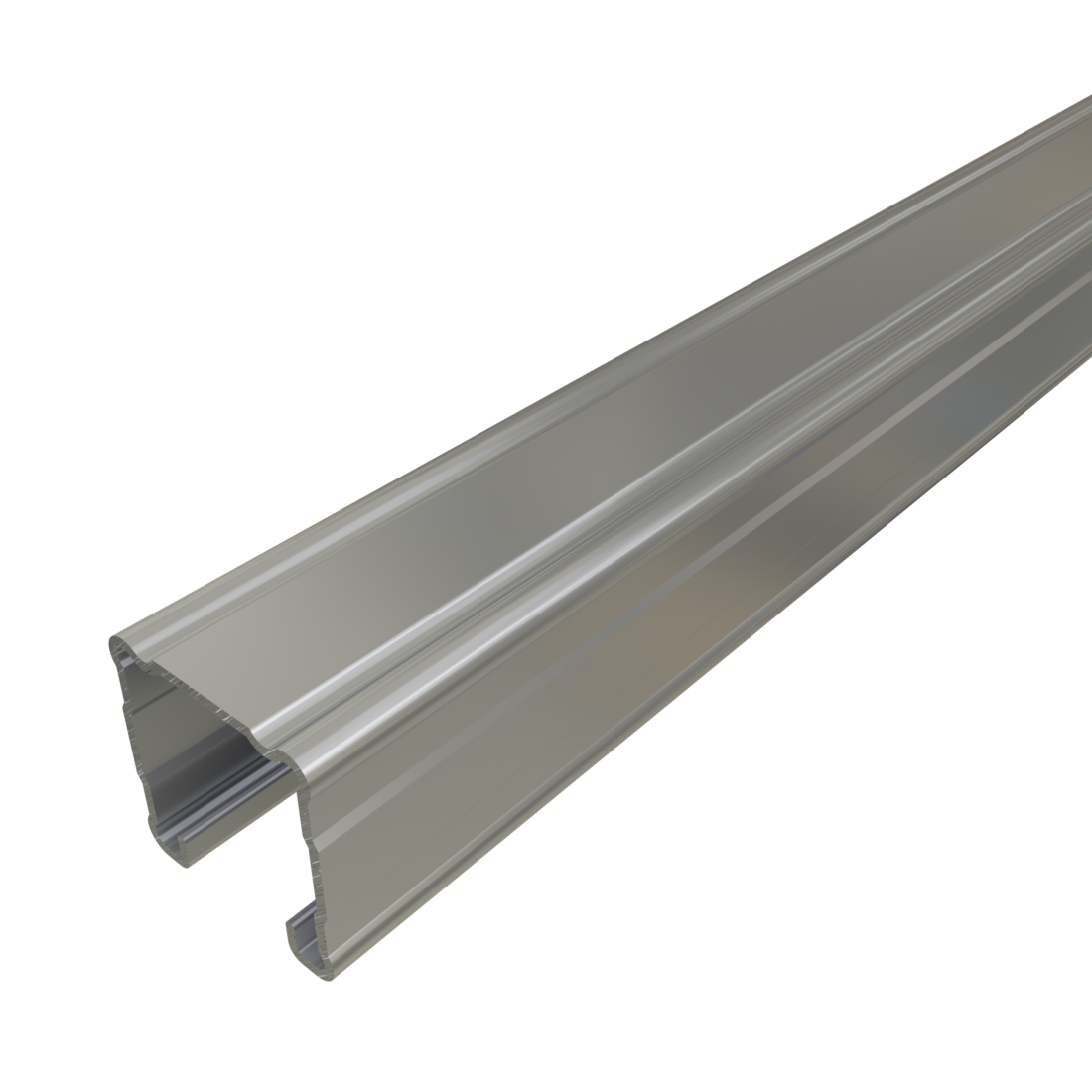

14 Gauge Solid Strut Channel P1100 (solid) channel is our 14 gauge channel that is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing. For application examples, refer to our Application Showcase.


Features:

  • UL and CSA listed
  • Light gauge
  • Product dimensions are 1 5/8" wide x 1 5/8" tall x 14 ga. thick, solid
  • Punched holes are also available for ease of installation
  • Our P1100 is available in the following finishes: Pre-Galvanized (PG), Unistrut Defender (DF), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS or ST) and Aluminum (EA).
  • Made in the USA


Brands Available:

  • Unistrut



Beam Loading

Beam Loading - P1100
Span
(in)		 Max Allowable Uniform Load
(lbs)		 Deflection at Uniform Load
(in)		 Uniform Loading at Deflection Lateral Bracing Reduction Factor
Span/180
(lbs)		 Span/240
(lbs)		 Span/360
(lbs)
24 1,350 0.06 1,350 1,350 1,350 1.00
36 900 0.13 900 900 700 0.89
48 680 0.23 680 590 400 0.78
60 540 0.36 510 380 250 0.68
72 450 0.51 350 260 180 0.59
84 390 0.70 260 190 130 0.52
96 340 0.92 200 150 100 0.47
108 300 1.15 160 120 80 0.43
120 270 1.42 130 90 60 0.40
144 230 2.09 90 70 40 0.36
168 190 2.75 60 50 30 0.32
192 170 3.67 50 40 NR 0.30
216 150 4.61 40 30 NR 0.28
240 140 5.90 30 NR NR 0.26
Note NR - Not Recommended
Refer to the General Specifications for loading information.


Column Loading

Column Loading - P1100
Unbraced
Height
(in)		 Allowable Load at Slot Face
(lbs)
Max Column Load Applied at C.G.
K=0.65 (lbs) K=0.80 (lbs) K=1.0 (lbs) K=1.2 (lbs)
24 2,800 8,040 7,330 6,360 5,430
36 2,410 6,480 5,430 4,190 3,210
48 1,940 4,990 3,830 2,760 2,160
60 1,550 3,740 2,760 2,050 1,640
72 1,290 2,860 2,160 1,640 1,320
84 1,100 2,310 1,780 1,370 1,110
96 950 1,950 1,520 1,180 950
108 840 1,690 1,320 1,030 KL/r>200
120 760 1,490 1,180 KL/r>200 KL/r>200
144 630 1,210 950 KL/r>200 KL/r>200
Refer to the General Specifications for loading information.


Elements of Section

Elements of Section - P1100
Area of Section 0.418 in2 (2.7 cm2)
Axis 1-1 Axix 2-2
Moment of Inertia (I) 0.145 in4 (6 cm4) 0.176 in4 (7.3 cm4)
Section Modulus (S) 0.162 in3 (2.7 cm3) 0.217 in3 (3.6 cm3)
Radius of Gyration (r) 0.589 in (1.5 cm) 0.65 in (1.7 cm)


General Specifications

Standard Lengths:

  • 10 feet:  10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
  • 20 feet:  20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)

Special Lengths:

Curved Channel:

  • Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.

Load Data:

  • All beam and column load data pertains to carbon steel and stainless steel channels.
  • Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
  • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
  • Loads are based on 33 ksi steel cold formed to 42 ksi.
  • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
  • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
  • For bearing loads, reference our Bearing Loads Page.


Materials & Finishes

Materials & Finishes - Standard:

  • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
  • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
  • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
  • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
  • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
  • Plain (PL):  Conforms to ASTM A1011 SS GR 33
Materials & Finishes - Special Metals:
  • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
  • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
  • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

* These materials have different physical properties and performance characteristics. Please contact us for design support.
