Unistrut P2867

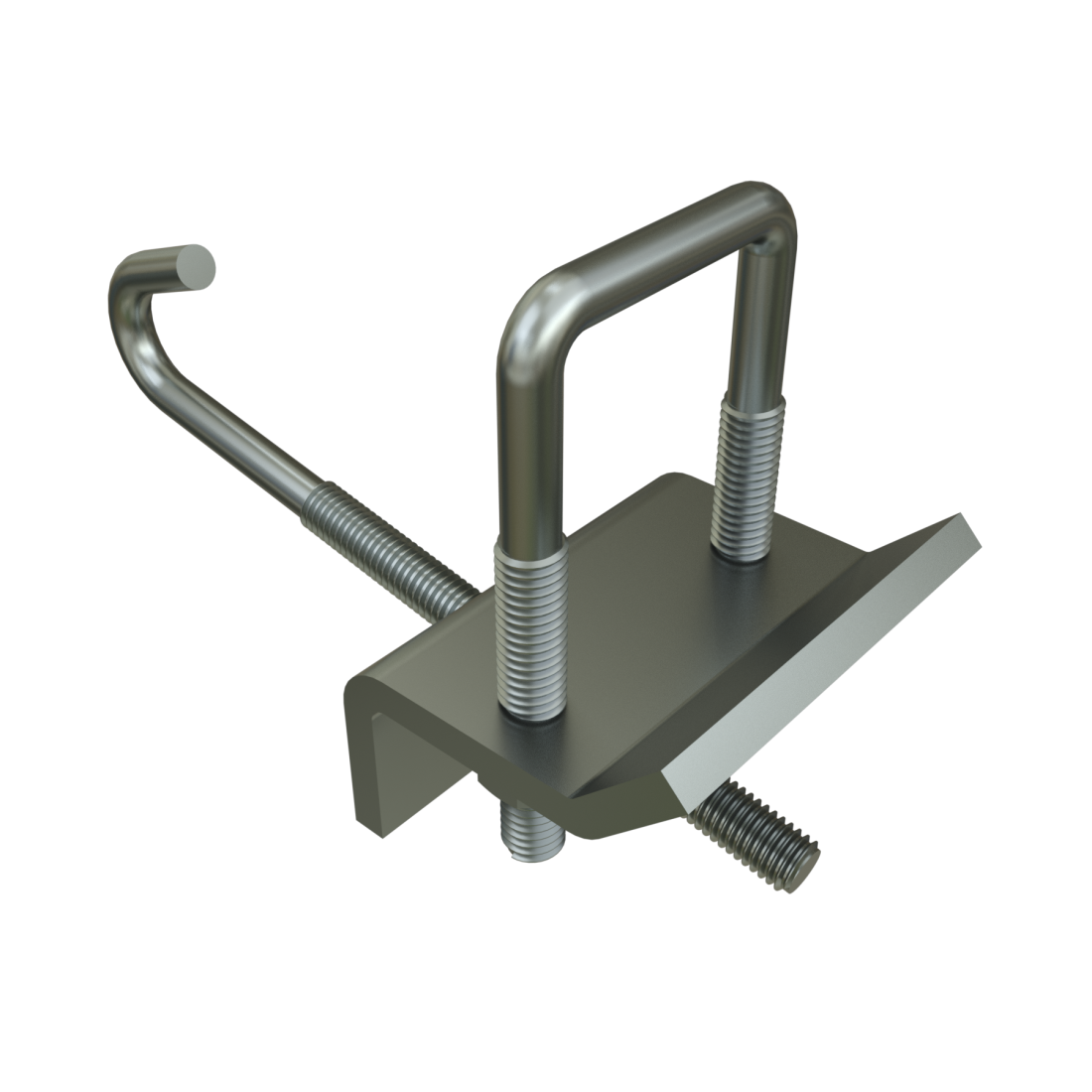

Unistrut P2867 - Beam Clamp for 4" - 12" Wide Beams
Unistrut P2867 - Beam Clamp for 4" - 12" Wide Beams

Unistrut

Unistrut P2867 - Beam Clamp for 4" - 12" Wide Beams

Sale price$0.00
Sold out
Item Code:P2867
Quantity:

Features:

  • Use with P1000, P1100, P3000, P3300, P3301, P4000, P4001, P4100 and P4101 channels
  • Beam flange widths: 4" to 18"
  • J-bolt retains clamp to beam
  • Includes J-bolt, U-bolt and hex nuts
  • Load capacity governed strength of strut channel and beam flange
  • This series is available in Electrogalvanized (EG)



General Specifications

  • Includes J-Bolt, U-Bolts and Hex Nuts
  • For use with P1000, P1100, P2000, P3000, P3300, P3301, P4000, P4001, P4100, and P4101 Channels

Materials & Finishes

Materials & Finishes:

  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1 or SC3



P2867 CUT SHEET PDF DOWNLOAD
