Design Loads - P2896 | ||
---|---|---|
Part Number | Rod Size in |
Design Load lbs (kN) |
P2896-37 | 3/8" | 400 (1.78) |
P2896-50 | 1/2" | 400 (1.78) |
P2896-62 | 5/8" | 450 (2.00) |
P2896-75 | 3/4" | 600 (2.67) |

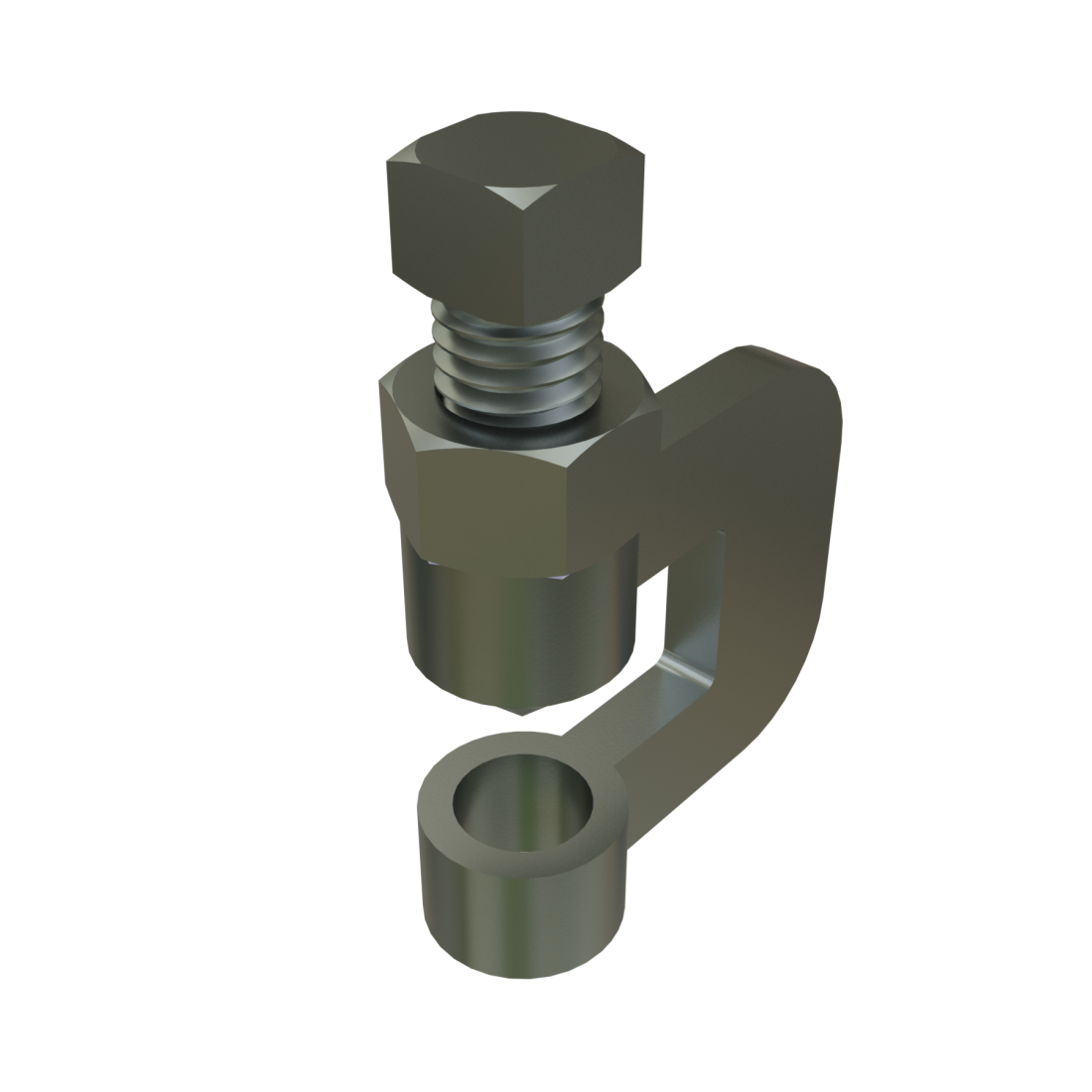

![Unistrut P2896 Beam Clamp](http://unistrutohio.com/cdn/shop/files/US-P2896_EG_Primary_Image_1100x.png?v=1685128990)
![Unistrut P2896 - Beam Clamp for 3/8" Rod](http://unistrutohio.com/cdn/shop/files/P2896-no-dimensions_500x.png?v=1685128990)
![Unistrut P2896 - Beam Clamp for 3/8" Rod](http://unistrutohio.com/cdn/shop/files/p2896_500x.png?v=1685128990)
Unistrut

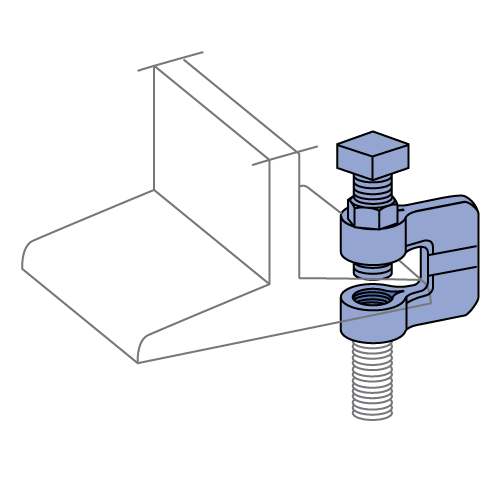

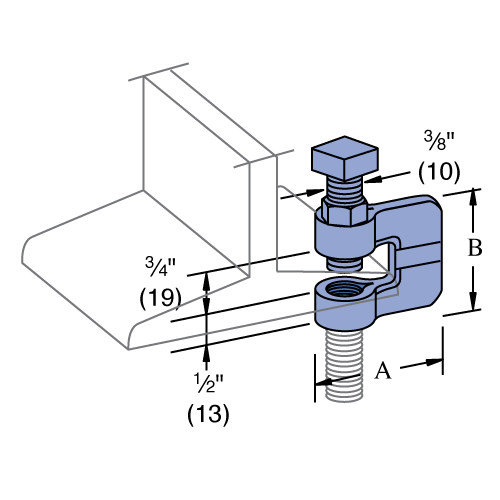

Unistrut P2896 - Beam Clamp for 3/8" Rod
Finish:Electrogalvanized
Item Code:P289637EG
Quantity:
Features:
- Vertical Design Load: 400 to 600 lbs per clamp
- 3/4" max flange thickness
- This series is available in Electrogalvanized (EG)
Design Loads
Materials & Finishes
Materials & Finishes:
- Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1 or SC3
