Beam Loading - P3000HS | ||||||
---|---|---|---|---|---|---|
Span (in) |
Max Allow. Uniform Load (lbs) |
Deflection at Uniform Load (in) |
Uniform Loading at Deflection | Lateral Bracing Reduction Factor | ||
Span/180 (lbs) |
Span/240 (lbs) |
Span/360 (lbs) |
||||
24 | 1,152 | 0.07 | 1,152 | 1,152 | 1,152 | 1.00 |
36 | 765 | 0.15 | 765 | 765 | 522 | 0.96 |
48 | 576 | 0.26 | 576 | 441 | 297 | 0.91 |
60 | 459 | 0.41 | 378 | 279 | 189 | 0.88 |
72 | 387 | 0.59 | 261 | 198 | 135 | 0.84 |
84 | 333 | 0.81 | 189 | 144 | 99 | 0.82 |
96 | 288 | 1.05 | 144 | 108 | 72 | 0.79 |
108 | 252 | 1.30 | 117 | 90 | 54 | 0.77 |
120 | 234 | 1.66 | 90 | 72 | 45 | 0.75 |
144 | 189 | 2.32 | 63 | 45 | 36 | 0.70 |
168 | 162 | 3.15 | 45 | 36 | 27 | 0.66 |
192 | 144 | 4.18 | 36 | 27 | NR | 0.62 |
216 | 126 | 5.21 | NR | NR | NR | 0.58 |
240 | 117 | 6.64 | NR | NR | NR | 0.54 |
Note | NR - Not Recommended |
Unistrut

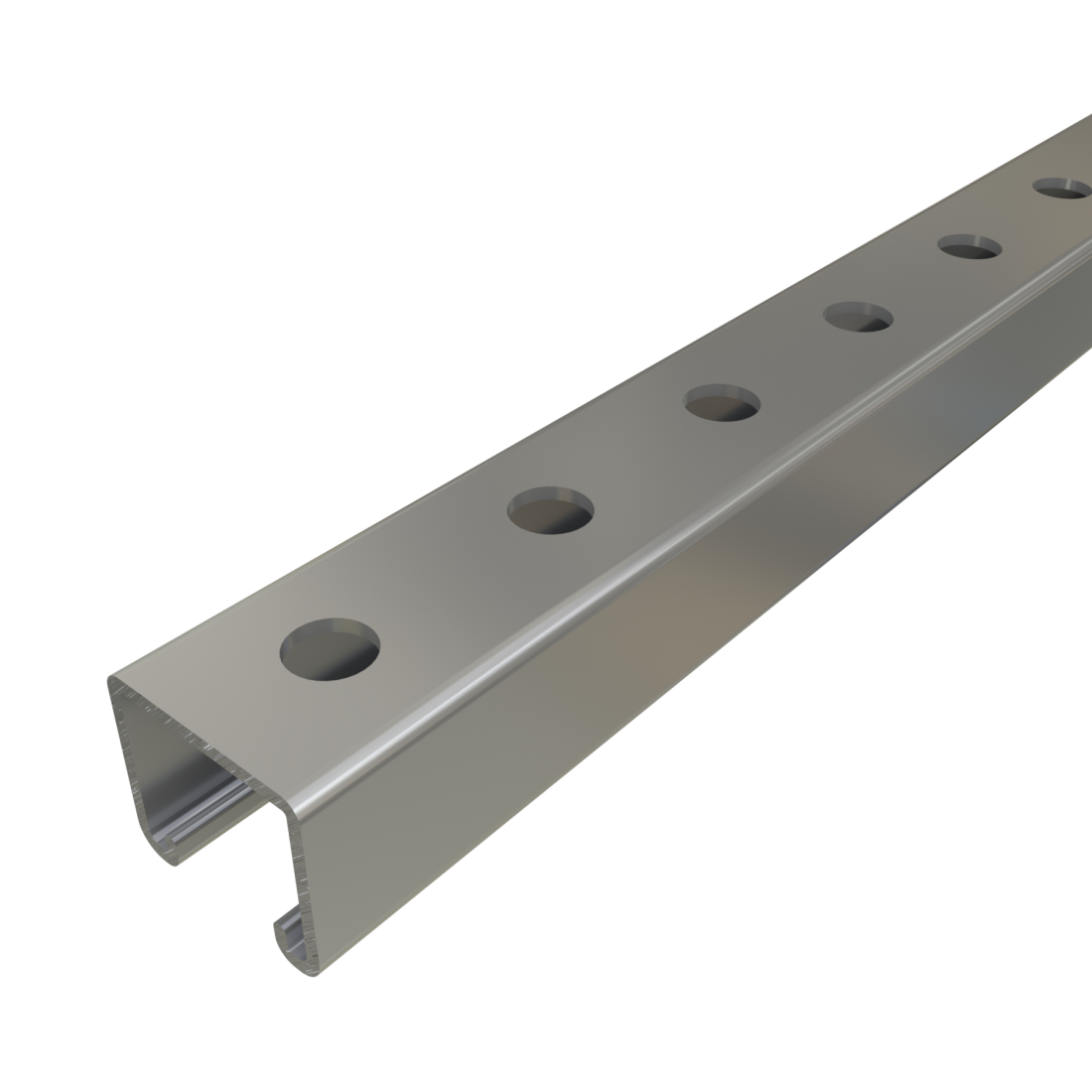

Unistrut P3000HS - 1-5/8" x 1-3/8", 12 Gauge Metal Framing Strut, Round Holes
Length:10'
Finish:Perma-Green® III
Quantity:
CUT TO A CUSTOM LENGTH? MAY SAVE ON SHIPPING
HOW WOULD YOU LIKE IT CUT?
Some cutting jobs allow us to use ground shipping rather than LTL, yielding significant freight savings. A customer service associate will contact you to confirm the cut list and shipping and freight costs prior to finalizing your order. eg - 4 cuts per stick x 5ft per section

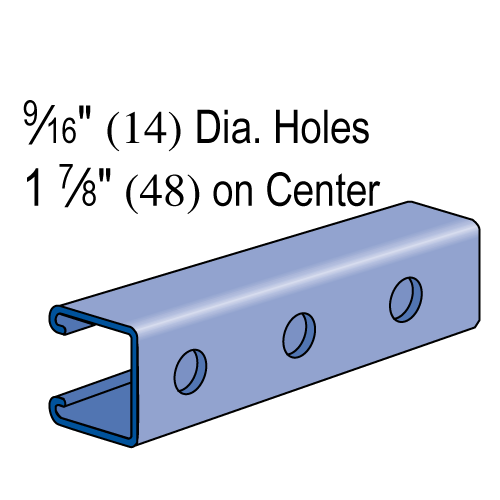

12 Gauge Strut Channel with Holes P3000HS has round holes on the back side for use with 1/2" threaded rod and fasteners (or smaller diameters with use of flat washers). These holes can eliminate the need for field drilling when installing a trapeze support, anchoring the channel to a surface, or for many other applications.
Features:
- Product dimensions are 1 5/8" wide x 1 3/8" tall x 12 ga. thick; with round holes on one side
- The holes are 9/16" in diameter and 1 7/8" on center.
- The hole diameters and spacing match general fittings so that nearly all our fittings can be attached through these holes
- Our P3000HS is available in the following finishes: Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS) and Aluminum (EA).
- Made in the USA
Beam Loading
Column Loading
Column Loading - P3000HS | |||||
---|---|---|---|---|---|
Unbraced Height (in) |
Allowable Load at Slot Face (lbs) |
Max Column Load Applied at C.G. | |||
K=0.65 (lbs) | K=0.80 (lbs) | K=1.0 (lbs) | K=1.2 (lbs) | ||
24 | 2,400 | 6,650 | 6,080 | 5,280 | 4,470 |
36 | 2,050 | 5,380 | 4,470 | 3,370 | 2,500 |
48 | 1,600 | 4,090 | 3,040 | 2,100 | 1,590 |
60 | 1,230 | 2,960 | 2,100 | 1,500 | 1,160 |
72 | 970 | 2,190 | 1,590 | 1,160 | 910 |
84 | 790 | 1,720 | 1,270 | 950 | 760 |
96 | 660 | 1,410 | 1,060 | 800 | 650 |
108 | 570 | 1,200 | 910 | 700 | KL/r>200 |
120 | 510 | 1,040 | 800 | 620 | KL/r>200 |
144 | 420 | 830 | 650 | KL/r>200 | KL/r>200 |
Elements of Section
Elements of Section - P3000HS | ||
---|---|---|
Area of Section | 0.5 in2 (3.2 cm2) | |
Axis 1-1 | Axix 2-2 | |
Moment of Inertia (I) | 0.12 in4 (5 cm4) | 0.203 in4 (8.4 cm4) |
Section Modulus (S) | 0.153 in3 (2.5 cm3) | 0.250 in3 (4.1 cm3) |
Radius of Gyration (r) | 0.489 in (1.2 cm) | 0.638 in (1.6 cm) |
General Specifications
Standard Lengths:
- 10 feet: 10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
- 20 feet: 20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)
Special Lengths:
- Available with a tolerance of ±1/8" (3 mm). Request quote.
Curved Channel:
- Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.
Load Data:
- All beam and column load data pertains to carbon steel and stainless steel channels.
- Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
- Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
- Loads are based on 33 ksi steel cold formed to 42 ksi.
- Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
- Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
- For bearing loads, reference our Bearing Loads Page.
Materials & Finishes
Materials & Finishes - Standard:
- Pregalvanized (PG): Conforms to ASTM A653 SS GR 33, G90.
- Unistrut Defender (DF): Conforms to ASTM A1046 SS GR 33
- Hot Dip Galvanized (HG): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
- Perma-Green (GR): Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
- Perma-Gold (ZD): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
- Plain (PL): Conforms to ASTM A1011 SS GR 33
- Stainless Steel, Type 304 (SS): ASTM A240, Type 304 *
- Stainless Steel, Type 316 (ST): ASTM A240, Type 316 *
- Aluminum (EA): ASTM B221, Type 6063-T6 (Extruded) *
* These materials have different physical properties and performance characteristics. Please contact us for design support.
