Unistrut P3000T - 1-5/8" x 1-3/8", 12 Gauge Metal Framing Strut, Slotted
Unistrut P3000T - 1-5/8" x 1-3/8", 12 Gauge Metal Framing Strut, Slotted

Unistrut

Unistrut P3000T - 1-5/8" x 1-3/8", 12 Gauge Metal Framing Strut, Slotted

$71.00
Length:10'
Finish:Perma-Green® III
Quantity:

CUT TO A CUSTOM LENGTH? MAY SAVE ON SHIPPING

HOW WOULD YOU LIKE IT CUT?

Some cutting jobs allow us to use ground shipping rather than LTL, yielding significant freight savings. A customer service associate will contact you to confirm the cut list and shipping and freight costs prior to finalizing your order. eg - 4 cuts per stick x 5ft per section

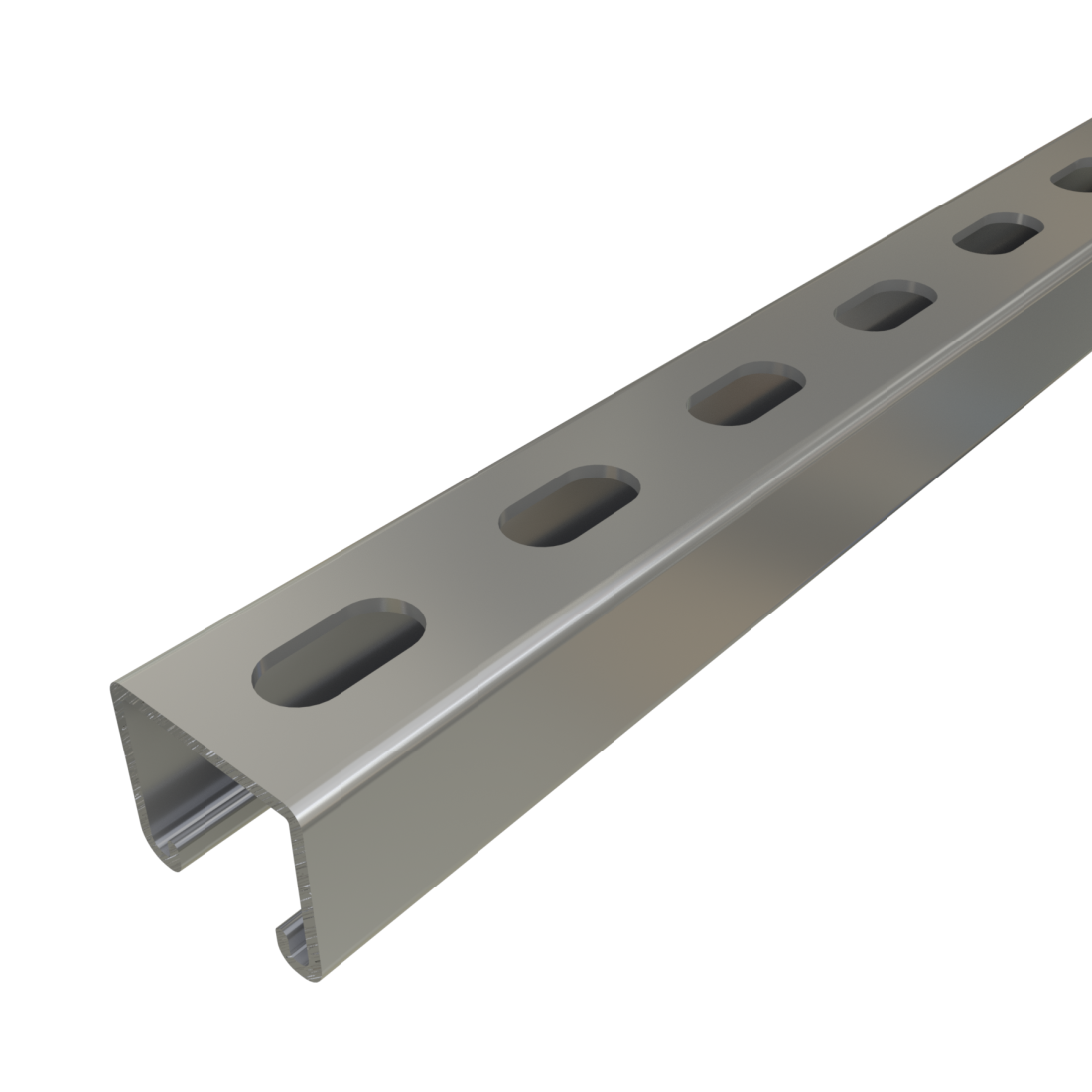

12 Gauge Strut Channel with Slots P3000T this channel is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing. For application examples, refer to our Application Showcase. The slotted material allows for adjustability and doesn’t compromise too much on material strength. It has 85% of the capacity of the solid version of the profile.


Features:

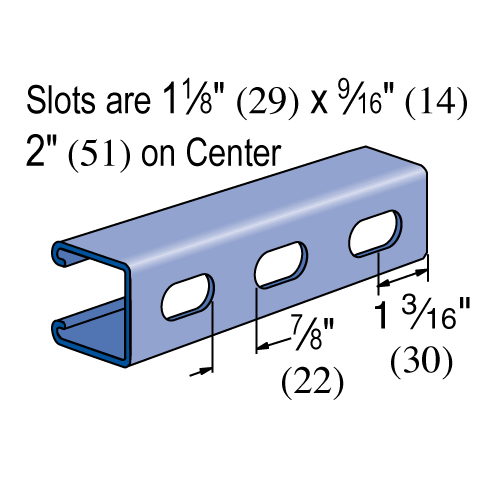

  • Product dimensions are 1 5/8" wide x 1 3/8" tall x 12 ga. Thick
  • Slots are sized for a 1/2" threaded rod or fastener.
  • Our P3000T is available in Pre-Galvanized (PG), Unistrut Defender (DF), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS or ST) and Aluminum (EA).
  • Made in the USA



Beam Loading

Beam Loading - P3000T
Span
(in)		 Max Allow. Uniform Load
(lbs)		 Deflection at Uniform Load
(in)		 Uniform Loading at Deflection Lateral Bracing Reduction Factor
Span/180
(lbs)		 Span/240
(lbs)		 Span/360
(lbs)
24 1,088 0.07 1,088 1,088 1,088 1.00
36 723 0.15 723 723 493 0.96
48 544 0.26 544 417 281 0.91
60 434 0.41 357 264 179 0.88
72 366 0.59 247 187 128 0.84
84 315 0.81 179 136 94 0.82
96 272 1.05 136 102 68 0.79
108 238 1.30 111 85 51 0.77
120 221 1.66 85 68 43 0.75
144 179 2.32 60 43 34 0.70
168 153 3.15 43 34 26 0.66
192 136 4.18 34 26 NR 0.62
216 119 5.21 NR NR NR 0.58
240 111 6.64 NR NR NR 0.54
Note NR - Not Recommended
Refer to the General Specifications for loading information.

Column Loading

Column Loading - P3000T
Unbraced
Height
(in)		 Allowable Load at Slot Face
(lbs)		 Max Column Load Applied at C.G.
K=0.65 (lbs) K=0.80 (lbs) K=1.0 (lbs) K=1.2 (lbs)
24 3,180 9,690 8,980 8,050 7,210
36 2,920 8,160 7,210 6,130 5,240
48 2,590 6,820 5,810 4,730 3,860
60 2,300 5,740 4,730 3,690 2,990
72 2,040 4,850 3,860 2,990 2,270
84 1,830 4,100 3,240 2,400 KL/r>200
96 1,650 3,530 2,770 1,840 KL/r>200
108 1,450 3,080 2,270 KL/r>200 KL/r>200
120 1,250 2,710 1,840 KL/r>200 KL/r>200
Refer to the General Specifications for loading information.

Elements of Section

Elements of Section - P3000T
Area of Section 0.500 in2 (3.2 cm2)
Axis 1-1 Axix 2-2
Moment of Inertia (I) 0.120 in4 (5 cm4) 0.203 in4 (8.4 cm4)
Section Modulus (S) 0.153 in3 (2.5 cm3) 0.25 in3 (4.1 cm3)
Radius of Gyration (r) 0.489 in (1.2 cm) 0.638 in (1.6 cm)

General Specifications

Standard Lengths:

  • 10 feet:  10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
  • 20 feet:  20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)

Special Lengths:

Curved Channel:

  • Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.

Load Data:

  • All beam and column load data pertains to carbon steel and stainless steel channels.
  • Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
  • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
  • Loads are based on 33 ksi steel cold formed to 42 ksi.
  • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
  • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
  • For bearing loads, reference our Bearing Loads Page.

Materials & Finishes

Materials & Finishes - Standard:

  • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
  • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
  • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
  • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
  • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
  • Plain (PL):  Conforms to ASTM A1011 SS GR 33
Materials & Finishes - Special Metals:
  • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
  • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
  • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

* These materials have different physical properties and performance characteristics. Please contact us for design support.



P3000T CUT SHEET PDF DOWNLOAD
