Unistrut P3249 thru P3252 - Concrete Insert (3 in - 8 in)
Unistrut P3249 thru P3252 - Concrete Insert (3 in - 8 in)
Unistrut P3249 thru P3252 - Concrete Insert (3 in - 8 in)

Unistrut

Unistrut P3249 thru P3252 - Concrete Insert (3 in - 8 in)

$0.00
Sold out
Finish:Pregalvanized Zinc
Item Code:P3249NC
Quantity:

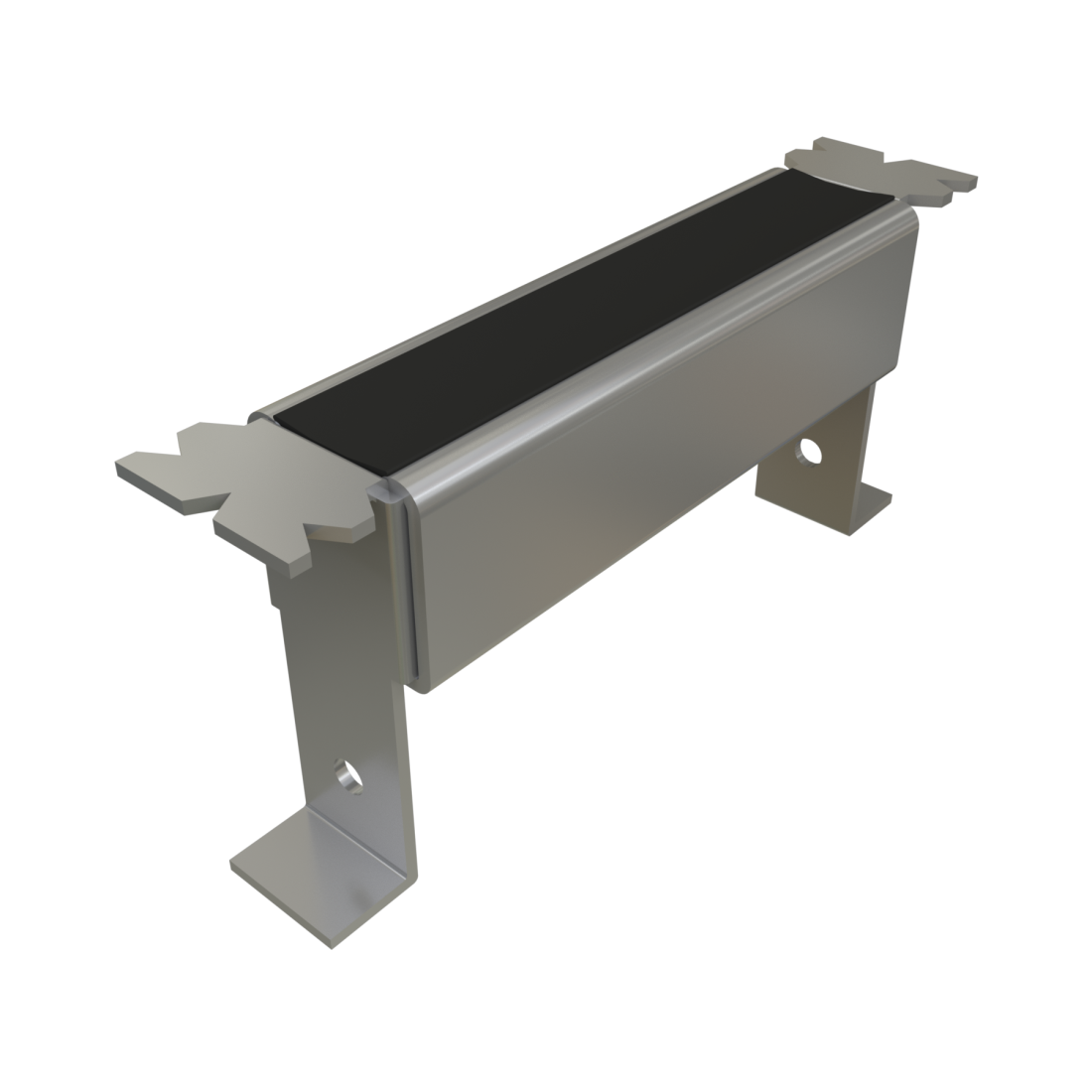

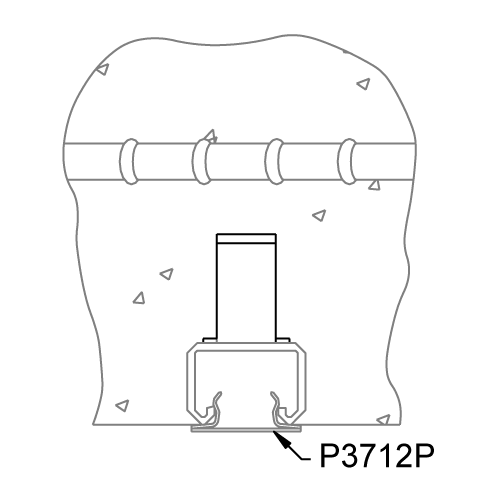

12 Gauge Concrete Insert (Channel Style) P3200 Series is ideal for anchoring structures and supports to concrete. This product allows easy installation before the concrete is poured, and attachment anywhere along its length using 1-5/8" Fittings, Channel Nuts or other products. It is perfect for applications that may need to be re-configured or re-anchored.

Features:

  • Up to 1,200 lbs capacity
  • Includes closure strip and end caps unless otherwise requested
  • 2-7/8" embed
  • Channel dimensions are 1 5/8" wide x 1 3/8" deep x 12 ga. Thick
  • Embedment tabs are spaced at 8" O.C. and have an embedment depth of 2-7/8"
  • The product may be supplied with Back Plates, End Caps and a Closure Strip to prevent concrete seepage into the channel, per the options below.
  • Our P3200 Series is available in Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), and Stainless Steel (SS).
  • Options: NC Suffix - No Closure Strip, with End Caps & Back Plates, WC Suffix - With Closure Strip, End Caps & Back Plates, X Suffix - No Closure Strip, no End Caps, with Back Plates

Download Unistrut P3249 - P3252 Concrete Insert Cut Sheet

Download Unistrut Concrete Inserts Catalog
