Unistrut P3300HS - 1-5/8" x 7/8", 12 Gauge Metal Framing Strut, Round Holes
Unistrut P3300HS - 1-5/8" x 7/8", 12 Gauge Metal Framing Strut, Round Holes

Unistrut

Unistrut P3300HS - 1-5/8" x 7/8", 12 Gauge Metal Framing Strut, Round Holes

$0.00
Sold out
Length:10'
Finish:Perma-Green® III
Quantity:

CUT TO A CUSTOM LENGTH? MAY SAVE ON SHIPPING

HOW WOULD YOU LIKE IT CUT?

Some cutting jobs allow us to use ground shipping rather than LTL, yielding significant freight savings. A customer service associate will contact you to confirm the cut list and shipping and freight costs prior to finalizing your order. eg - 4 cuts per stick x 5ft per section

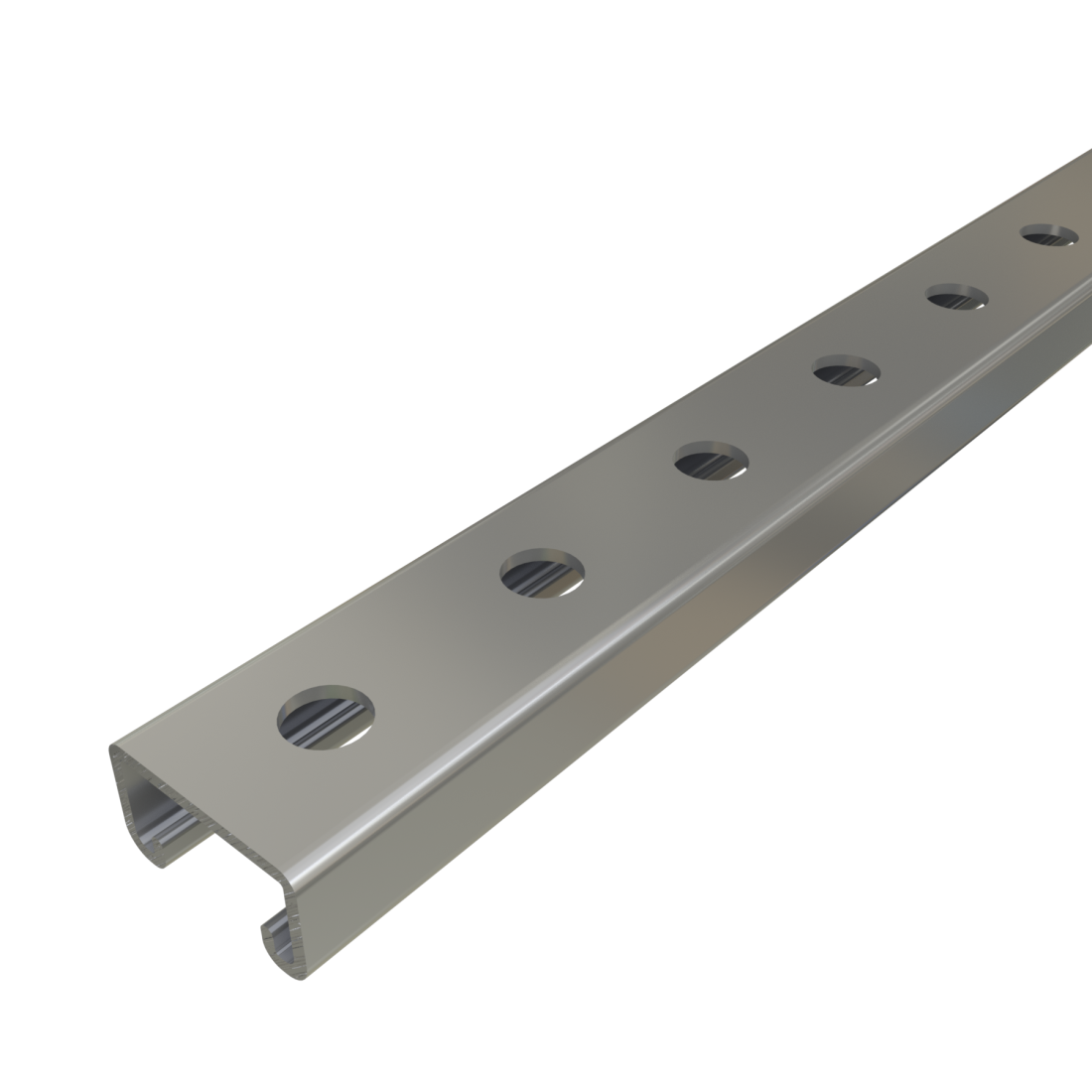

The P3300HS has round holes on the back side for use with 1/2" threaded rod and fasteners. These holes can eliminate the need for field drilling when installing a trapeze support, anchoring the channel to a surface, or for many other applications. This channel is commonly used for trapeze supports, seismic bracing, and anchoring to floors, ceilings and walls.


Features:

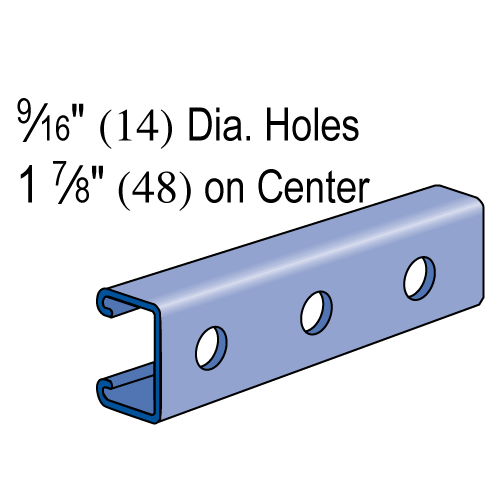

  • Product dimensions are 1 5/8" wide x 7/8" tall x 12 ga. thick; with round holes on one side.
  • The holes are 9/16" in diameter and 1 7/8" on center
  • The hole diameters and spacing match Unistrut’s general fittings so that nearly all our fittings can be attached through these holes
  • Our P3300HS is available in the following finishes: Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS) and Aluminum (EA).
  • Made in the USA



Beam Loading

Beam Loading - P3300HS
Span
(in)		 Max Allow. Uniform Load
(lbs)		 Deflection at Uniform Load
(in)		 Uniform Loading at Deflection Lateral Bracing Reduction Factor
Span/180
(lbs)		 Span/240
(lbs)		 Span/360
(lbs)
24 540 0.10 540 540 360 1.00
36 360 0.22 324 243 162 1.00
48 270 0.40 180 135 90 1.00
60 216 0.62 117 90 54 0.98
72 180 0.89 81 63 36 0.97
84 153 1.20 63 45 27 0.96
96 135 1.59 45 36 27 0.94
108 117 1.96 36 27 18 0.93
120 108 2.48 27 18 18 0.92
Refer to the General Specifications for loading information.

Column Loading

Column Loading - P3300HS
Unbraced
Height
(in)		 Allowable
Load at Slot Face
(lbs)		 Max Column Load Applied at C.G.
K=0.65 (lbs) K=0.80 (lbs) K=1.0 (lbs) K=1.2 (lbs)
24 2,360 7,740 7,260 6,350 5,390
36 2,120 6,470 5,390 3,990 2,810
48 1,760 4,910 3,550 2,270 1,580
60 1,380 3,440 2,270 1,460 KL/r>200
72 1,080 2,390 1,580 KL/r>200 KL/r>200
Refer to the General Specifications for loading information.

Elements of Section

Elements of Section - P3300HS
Area of Section 0.395 in2 (2.5 cm2)
Axis 1-1 Axix 2-2
Moment of Inertia (I) 0.037 in4 (1.5 cm4) 0.143 in4 (6 cm4)
Section Modulus (S) 0.072 in3 (1.2 cm3) 0.176 in3 (2.9 cm3)
Radius of Gyration (r) 0.306 in (0.8 cm) 0.601 in (1.5 cm)

General Specifications

Standard Lengths:

  • 10 feet:  10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
  • 20 feet:  20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)

Special Lengths:

    Load Data:

    • All beam and column load data pertains to carbon steel and stainless steel channels.
    • Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
    • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
    • Loads are based on 33 ksi steel cold formed to 42 ksi.
    • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
    • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
    • For bearing loads, reference our Bearing Loads Page.

    Materials & Finishes

    Materials & Finishes - Standard:

    • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
    • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
    • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
    • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
    • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
    • Plain (PL):  Conforms to ASTM A1011 SS GR 33
    Materials & Finishes - Special Metals:
    • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
    • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
    • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

    * These materials have different physical properties and performance characteristics. Please contact us for design support.



    P3300HS CUT SHEET PDF DOWNLOAD
