| Beam Loading - P3301T | ||||||
|---|---|---|---|---|---|---|
| Span (in) |
Max Allow. Uniform Load (lbs) |
Deflection at Uniform Load (in) |
Uniform Loading at Deflection | Lateral Bracing Reduction Factor | ||
| Span/180 (lbs) |
Span/240 (lbs) |
Span/360 (lbs) |
||||
| 24 | 1,437 | 0.06 | 1,437 | 1,437 | 1,437 | 1.00 |
| 36 | 961 | 0.13 | 961 | 961 | 731 | 1.00 |
| 48 | 714 | 0.23 | 714 | 612 | 408 | 1.00 |
| 60 | 578 | 0.37 | 527 | 391 | 264 | 1.00 |
| 72 | 476 | 0.52 | 366 | 272 | 179 | 0.97 |
| 84 | 408 | 0.71 | 264 | 204 | 136 | 0.95 |
| 96 | 357 | 0.93 | 204 | 153 | 102 | 0.92 |
| 108 | 323 | 1.20 | 162 | 119 | 85 | 0.90 |
| 120 | 289 | 1.47 | 128 | 102 | 68 | 0.87 |
| 144 | 238 | 2.09 | 94 | 68 | 43 | 0.82 |
Unistrut

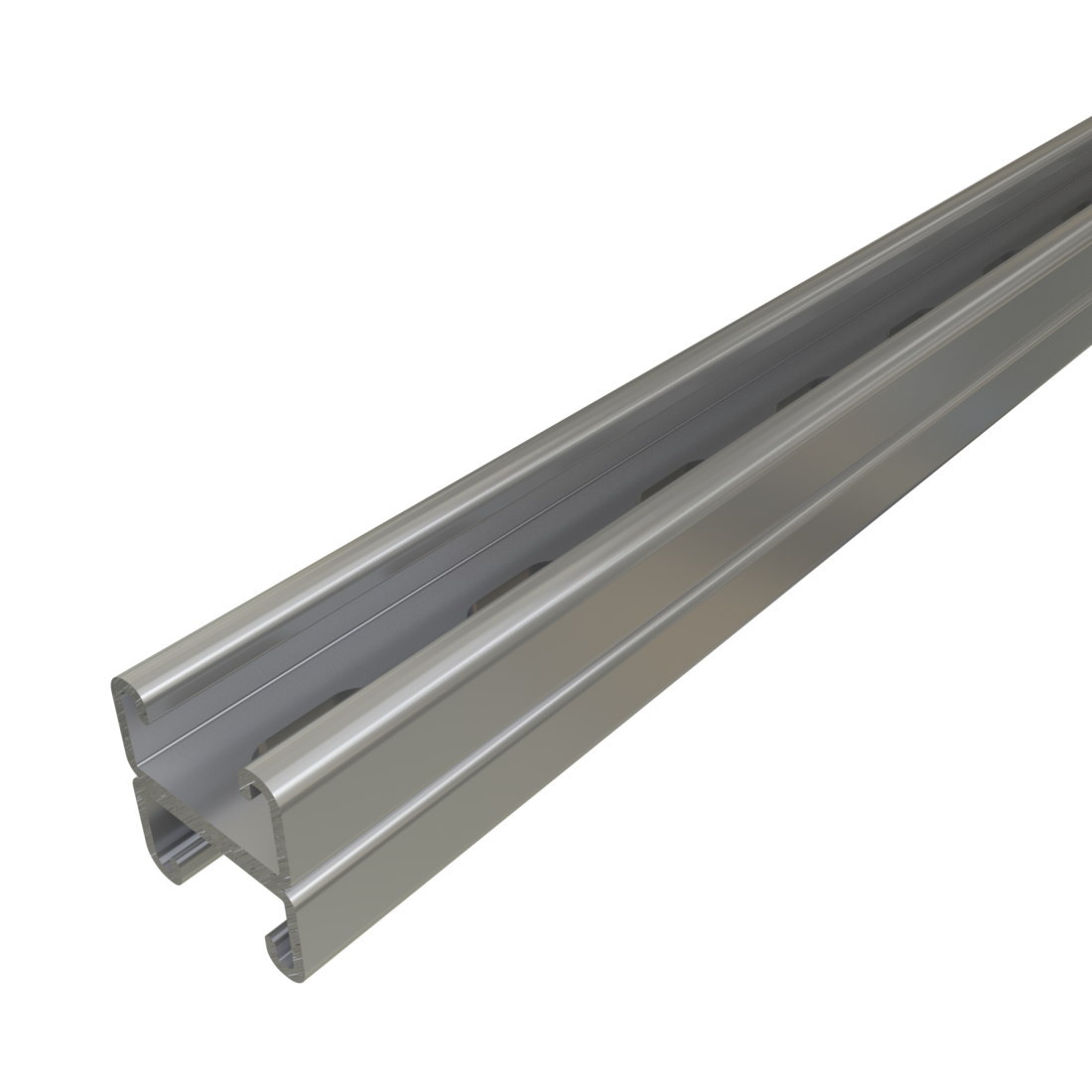

Unistrut P3301T - 1-5/8" x 1 3/4", 12 Gauge Back-to-Back Metal Framing Strut, Slotted
Length:10'
Finish:Hot-Dipped Galvanized
Quantity:
CUT TO A CUSTOM LENGTH? MAY SAVE ON SHIPPING
HOW WOULD YOU LIKE IT CUT?
Some cutting jobs allow us to use ground shipping rather than LTL, yielding significant freight savings. A customer service associate will contact you to confirm the cut list and shipping and freight costs prior to finalizing your order. eg - 4 cuts per stick x 5ft per section

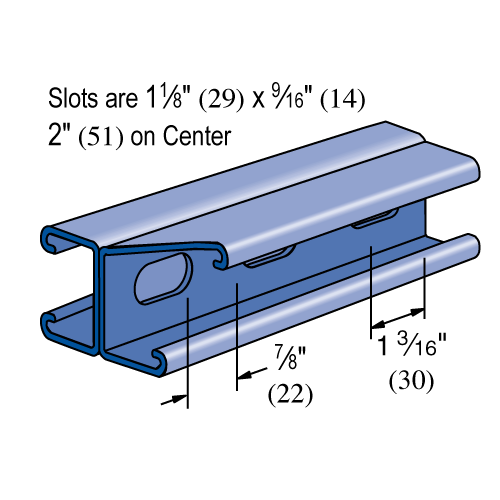

12 Gauge Welded Strut Channel with Slots P3301T (back-to-back slotted) has slots between the two profiles on the welded side. This slotted option is popular because it’s adjustable, yet has modest load capacity loss versus the solid version. It has 85% of the capacity of the solid version of the profile.
Features:
- Product dimensions are 1 5/8" wide x 1 3/4" tall x 12 ga. thick; back-to-back with slots.
- The slots are 2" wide x 11/16" long, 3" on center and sized for use with 5/8" threaded rod or fasteners.
- Our P3301T is available in the following finishes: Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD) and Stainless Steel (SS).
- Made in the USA
Beam Loading
Column Loading
| Column Loading - P3301T | |||||
|---|---|---|---|---|---|
| Unbraced Height (in) |
Allowable Load at Slot Face (lbs) |
Max Column Load Applied at C.G. | |||
| K=0.65 (lbs) | K=0.80 (lbs) | K=1.0 (lbs) | K=1.2 (lbs) | ||
| 24 | 4,290 | 16,990 | 16,580 | 15,770 | 14,720 |
| 36 | 4,150 | 15,890 | 14,720 | 12,980 | 11,120 |
| 48 | 3,940 | 14,160 | 12,360 | 9,880 | 7,510 |
| 60 | 3,650 | 12,210 | 9,880 | 6,940 | 4,820 |
| 72 | 3,270 | 10,190 | 7,510 | 4,820 | 3,350 |
| 84 | 2,800 | 8,220 | 5,530 | 3,540 | KL/r>200 |
| 96 | 2,410 | 6,420 | 4,240 | KL/r>200 | KL/r>200 |
| 108 | 2,080 | 5,070 | 3,350 | KL/r>200 | KL/r>200 |
Elements of Section
| Elements of Section - P3301T | ||
|---|---|---|
| Area of Section | 0.790 in2 (5.1 cm2) | |
| Axis 1-1 | Axix 2-2 | |
| Moment of Inertia (I) | 0.176 in4 (7.3 cm4) | 0.285 in4 (11.9 cm4) |
| Section Modulus (S) | 0.201 in3 (3.3 cm3) | 0.351 in3 (5.8 cm3) |
| Radius of Gyration (r) | 0.472 in (1.2 cm) | 0.601 in (1.5 cm) |
General Specifications
Standard Lengths:
- 10 feet: 10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
- 20 feet: 20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)
Special Lengths:
- Available with a tolerance of ±1/8" (3 mm). Request quote.
Curved Channel:
- Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.
Load Data:
- All beam and column load data pertains to carbon steel and stainless steel channels.
- Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
- Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
- Loads are based on 33 ksi steel cold formed to 42 ksi.
- Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
- Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
- For bearing loads, reference our bearing loads page.
Welds:
- Welded channels are spot welded 2" (51 mm) or 3" (76 mm) on-center.
Materials & Finishes
Materials & Finishes - Standard:
- Pregalvanized (PG): Conforms to ASTM A653 SS GR 33, G90.
- Unistrut Defender (DF): Conforms to ASTM A1046 SS GR 33
- Hot Dip Galvanized (HG): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
- Perma-Green (GR): Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
- Perma-Gold (ZD): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
- Plain (PL): Conforms to ASTM A1011 SS GR 33
- Stainless Steel, Type 304 (SS): ASTM A240, Type 304 *
- Stainless Steel, Type 316 (ST): ASTM A240, Type 316 *
- Aluminum (EA): ASTM B221, Type 6063-T6 (Extruded) *
* These materials have different physical properties and performance characteristics. Please contact us for design support.
