Unistrut P4100HS - 1-5/8" x 13/16", 14 Gauge Metal Framing Strut, Round Holes
Unistrut P4100HS - 1-5/8" x 13/16", 14 Gauge Metal Framing Strut, Round Holes

Unistrut

Unistrut P4100HS - 1-5/8" x 13/16", 14 Gauge Metal Framing Strut, Round Holes

$0.00 $9.20
Sold out
Length:10'
Finish:Perma-Green® III
Quantity:

CUT TO A CUSTOM LENGTH? MAY SAVE ON SHIPPING

HOW WOULD YOU LIKE IT CUT?

Some cutting jobs allow us to use ground shipping rather than LTL, yielding significant freight savings. A customer service associate will contact you to confirm the cut list and shipping and freight costs prior to finalizing your order. eg - 4 cuts per stick x 5ft per section

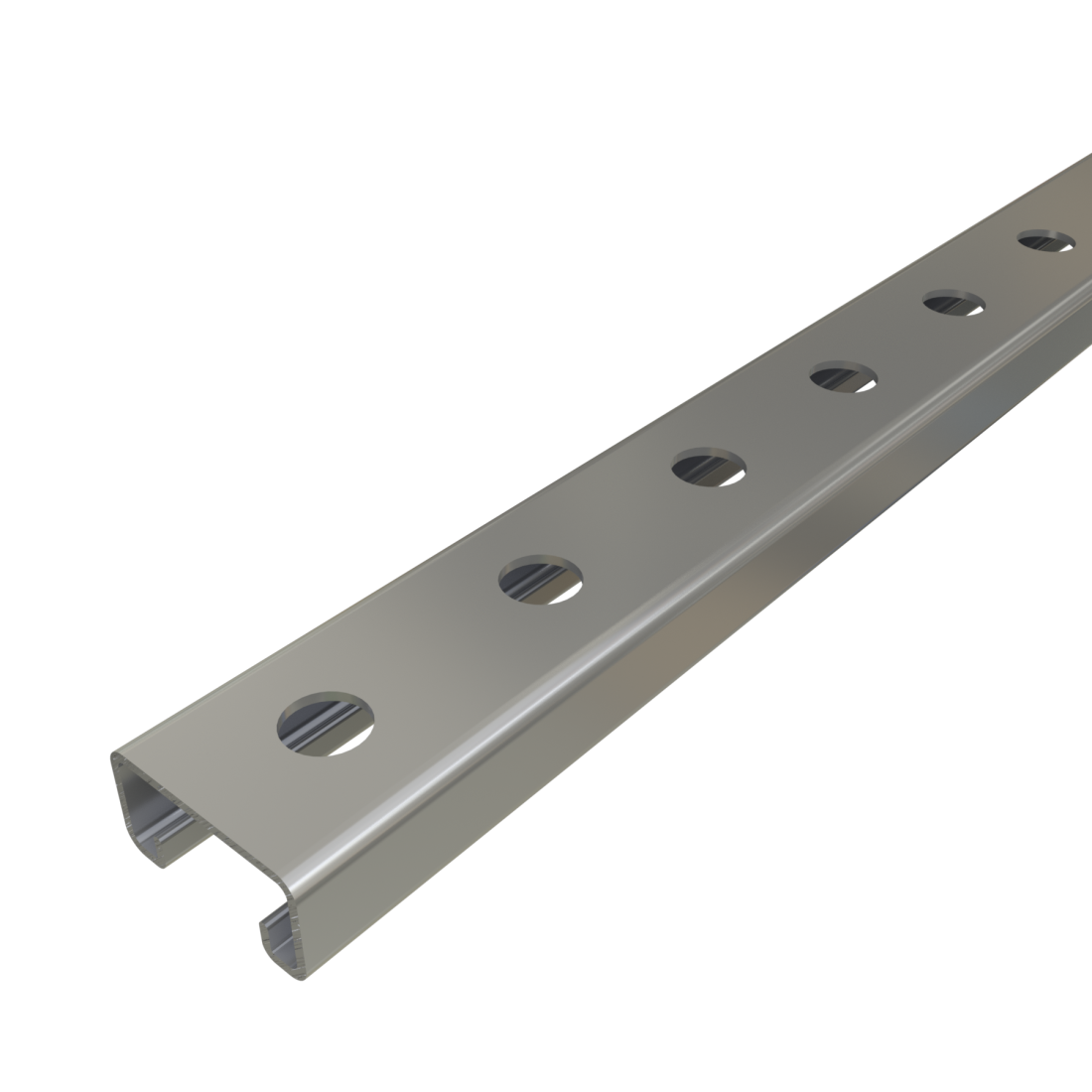

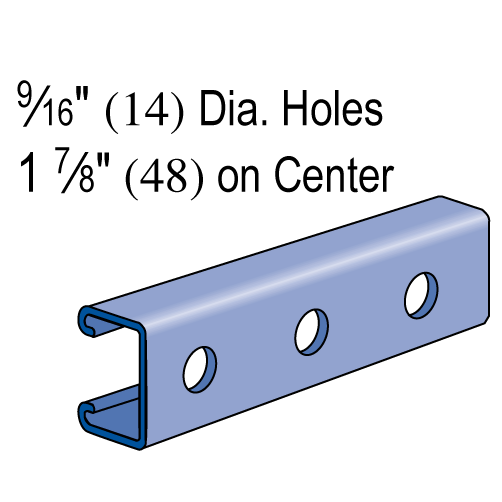

14 Gauge Strut Channel with Holes P4100HS has round holes on the back side for use with 1/2" threaded rod and fasteners (or smaller diameters with use of flat washers). These holes can eliminate the need for field drilling when installing a trapeze support, anchoring the channel to a surface, or for many other applications.



Features:

  • Product dimensions are 1 5/8" wide x 13/16" tall x 14 ga. thick; with round holes on one side.
  • The holes are 9/16" in diameter and 1 7/8" on center
  • The hole diameters and spacing match Unistrut’s general fittings so that nearly all our fittings can be attached through these holes
  • Ideal for electrical applications
  • Our P4100HS is available in the following finishes: Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD), Stainless Steel (SS) and Aluminum (EA).
  • Made in the USA



Beam Loading

Beam Loading - P4100HS
Span
(in)		 Max Allow. Uniform Load
(lbs)		 Deflection at Uniform Load
(in)		 Uniform Loading at Deflection Lateral Bracing Reduction Factor
Span/180
(lbs)		 Span/240
(lbs)		 Span/360
(lbs)
24 405 0.11 405 378 252 1.00
36 270 0.24 225 171 117 0.98
48 207 0.44 126 99 63 0.94
60 162 0.67 81 63 45 0.91
72 135 0.96 54 45 27 0.89
84 117 1.32 45 27 18 0.86
96 99 1.67 36 27 18 0.84
108 90 2.16 27 18 9 0.82
120 81 2.67 18 18 9 0.80
144 72 4.09 18 NR NR 0.76
168 54 4.88 NR NR NR 0.73
192 54 7.28 NR NR NR 0.69
216 45 8.64 NR NR NR 0.65
240 45 11.85 NR NR NR 0.61
Note NR - Not Recommended
Refer to the General Specifications for loading information.

Column Loading

Column Loading - P4100HS
Unbraced
Height
(in)		 Allowable
Load at Slot Face
(lbs)		 Max Column Load Applied at C.G.
K=0.65 (lbs) K=0.80 (lbs) K=1.0 (lbs) K=1.2 (lbs)
24 1,840 5,610 5,210 4,570 3,850
36 1,640 4,660 3,850 2,800 1,960
48 1,310 3,490 2,480 1,590 1,100
60 1,000 2,400 1,590 KL/r>200 KL/r>200
72 770 1,670 1,100 KL/r>200 KL/r>200
Refer to the General Specifications for loading information.

Elements of Section

Elements of Section - P4100HS
Area of Section 0.290 in2 (1.9 cm2)
Axis 1-1 Axix 2-2
Moment of Inertia (I) 0.026 in4 (1.1 cm4) 0.107 in4 (4.5 cm4)
Section Modulus (S) 0.054 in3 (0.9 cm3) 0.132 in3 (2.2 cm3)
Radius of Gyration (r) 0.298 in (0.8 cm) 0.609 in (1.5 cm)

General Specifications

Standard Lengths:

  • 10 feet:  10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
  • 20 feet:  20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)

Special Lengths:

    Load Data:

    • All beam and column load data pertains to carbon steel and stainless steel channels.
    • Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
    • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
    • Loads are based on 33 ksi steel cold formed to 42 ksi.
    • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
    • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
    • For bearing loads, reference our Bearing Loads Page.

    Materials & Finishes

    Materials & Finishes - Standard:

    • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
    • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
    • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
    • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
    • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
    • Plain (PL):  Conforms to ASTM A1011 SS GR 33
    Materials & Finishes - Special Metals:
    • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
    • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
    • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

    * These materials have different physical properties and performance characteristics. Please contact us for design support.



    P4100HS CUT SHEET PDF DOWNLOAD
