Unistrut P5000HS - 1-5/8" x 3-1/4", 12 Gauge Metal Framing Strut, Round Holes
Unistrut P5000HS - 1-5/8" x 3-1/4", 12 Gauge Metal Framing Strut, Round Holes

Unistrut

Unistrut P5000HS - 1-5/8" x 3-1/4", 12 Gauge Metal Framing Strut, Round Holes

$0.00 $23.80
Sold out
Length:10'
Finish:Perma-Green® III
Quantity:

CUT TO A CUSTOM LENGTH? MAY SAVE ON SHIPPING

HOW WOULD YOU LIKE IT CUT?

Some cutting jobs allow us to use ground shipping rather than LTL, yielding significant freight savings. A customer service associate will contact you to confirm the cut list and shipping and freight costs prior to finalizing your order. eg - 4 cuts per stick x 5ft per section

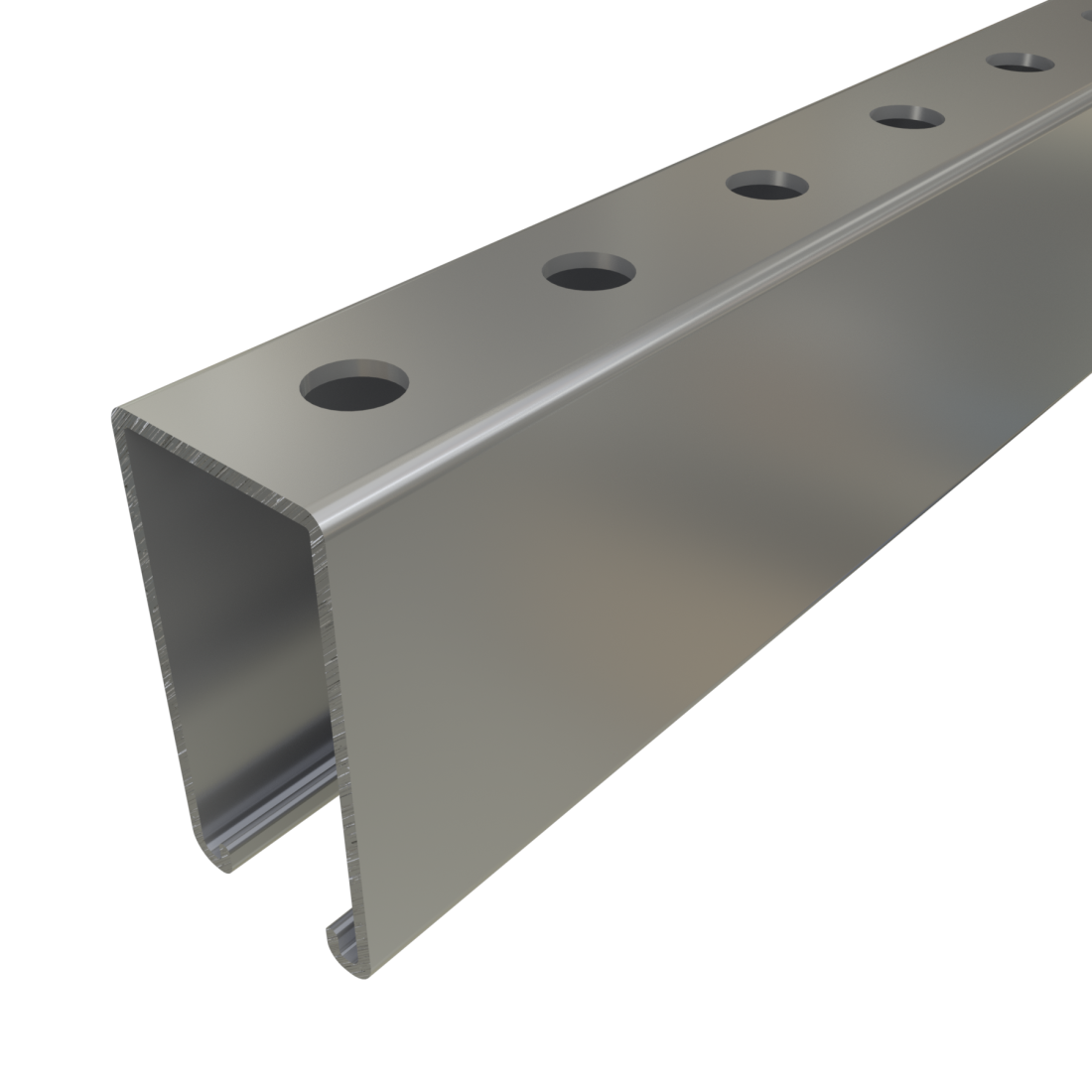

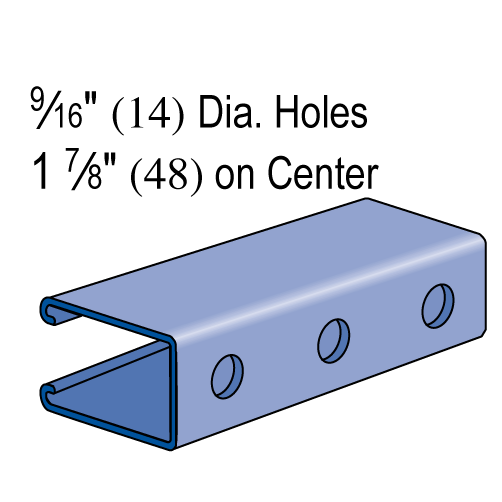

12 Gauge Strut Channel with Holes P5000HS has round holes on the back side for use with 1/2" threaded rod and fasteners (or smaller diameters with use of flat washers). These holes can eliminate the need for field drilling when installing a trapeze support, anchoring the channel to a surface, or for many other applications.

Features:

  • Product dimensions are 1 5/8" wide x 3 1/4" tall x 12 ga. thick; with round holes on one side.
  • The holes are 9/16" in diameter and 1 7/8" on center
  • The hole diameters and spacing match Unistrut’s general fittings so that nearly all our fittings can be attached through these holes
  • OPM pre-approved for seismic applications
  • Our P5000HS is available in the following finishes: Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), and Green (GR).
  • Made in the USA



Beam Loading

Beam Loading - P5000HS
Span
(in)		 Max Allow. Uniform Load
(lbs)		 Deflection at Uniform Load
(in)		 Uniform Loading at Deflection Lateral Bracing Reduction Factor
Span/180
(lbs)		 Span/240
(lbs)		 Span/360
(lbs)
24 4,734 0.03 4,734 4,734 4,734 0.98
36 3,150 0.07 3,150 3,150 3,150 0.85
48 2,367 0.12 2,367 2,367 2,367 0.70
60 1,890 0.18 1,890 1,890 1,728 0.55
72 1,575 0.26 1,575 1,575 1,197 0.44
84 1,350 0.36 1,350 1,323 882 0.38
96 1,179 0.47 1,179 1,008 675 0.33
108 1,053 0.59 1053 801 531 0.30
120 945 0.73 864 648 432 0.28
144 792 1.06 603 450 297 0.24
168 675 1.43 441 333 216 0.22
192 594 1.88 333 252 171 0.21
216 522 2.35 270 198 135 0.19
240 477 2.95 216 162 108 0.18
Note Bearing load may govern capacity.
Refer to the General Specifications for loading information.

Column Loading

Column Loading - P5000HS
Unbraced
Height
(in)		 Allowable Load at Slot Face
(lbs)		 Max Column Load Applied at C.G.
K=0.65 (lbs) K=0.80 (lbs) K=1.0 (lbs) K=1.2 (lbs)
24 5,650 16,870 15,180 12,850 10,600
36 4,690 13,140 10,600 7,650 5,660
48 3,560 9,550 6,860 4,790 3,660
60 2,730 6,680 4,790 3,450 2,710
72 2,160 4,980 3,660 2,710 2,170
84 1,760 3,950 2,960 2,240 1,820
96 1,500 3,270 2,500 1,930 1,580
108 1,310 2,800 2,170 1,690 1,390
120 1,170 2,450 1,930 1,510 KL/r>200
144 980 1,980 1,580 KL/r>200 KL/r>200
168 850 1,670 1,340 KL/r>200 KL/r>200
Refer to the General Specifications for loading information.

Elements of Section

Elements of Section - P5000HS
Area of Section 0.897 in2 (5.8 cm2)
Axis 1-1 Axix 2-2
Moment of Inertia (I) 1.098 in4 (45.7 cm4) 0.433 in4 (18 cm4)
Section Modulus (S) 0.627 in3 (10.3 cm3) 0.533 in3 (8.7 cm3)
Radius of Gyration (r) 1.107 in (2.8 cm) 0.695 in (1.8 cm)

General Specifications

Standard Lengths:

  • 10 feet:  10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
  • 20 feet:  20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)

Special Lengths:

    Load Data:

    • All beam and column load data pertains to carbon steel and stainless steel channels.
    • Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
    • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
    • Loads are based on 33 ksi steel cold formed to 42 ksi.
    • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
    • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
    • For bearing loads, reference our Bearing Loads Page.

    Materials & Finishes

    Materials & Finishes - Standard:

    • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
    • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
    • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
    • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
    • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
    • Plain (PL):  Conforms to ASTM A1011 SS GR 33
    Materials & Finishes - Special Metals:
    • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
    • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
    • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

    * These materials have different physical properties and performance characteristics. Please contact us for design support.



    P5000HS CUT SHEET PDF DOWNLOAD
