|Beam Loading - P5000T|
|Max Allow. Uniform Load
|Deflection at Uniform Load
|Uniform Loading at Deflection||Lateral Bracing Reduction Factor|
|Note||Bearing load may govern capacity.|

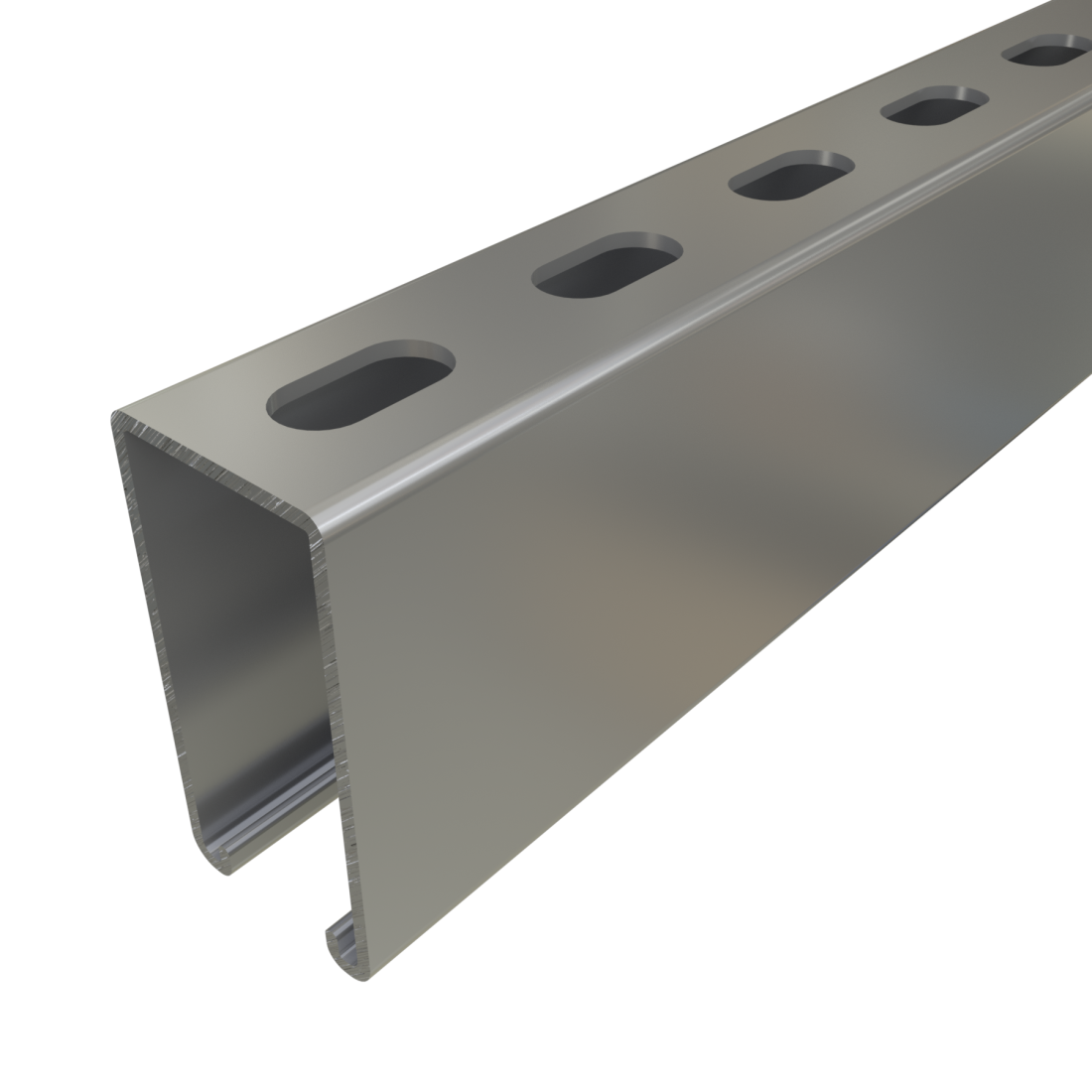

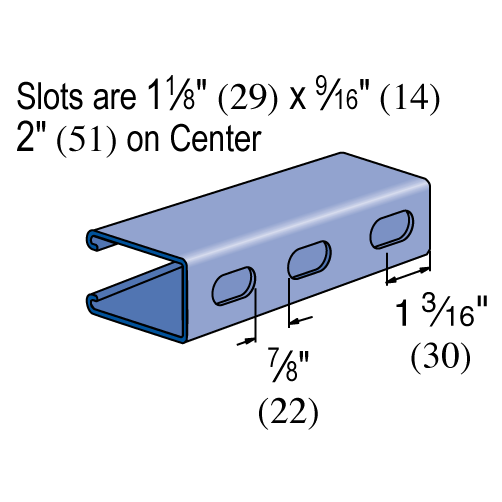

- Product dimensions are 1 5/8" wide x 3 1/4" tall x 12 ga. thick; back-to-back with slots.
- The slots are 9/16" wide x 1 1/8" long, 2" on center and sized for use with 1/2" threaded rod or fasteners
- OPM pre-approved for seismic applications
- Our P5000WT is available in the following finishes: Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD) and Stainless Steel (SS).
- Made in the USA
|Column Loading - P5000T|
Load at Slot Face
|Max Column Load Applied at C.G.|
|K=0.65 (lbs)||K=0.80 (lbs)||K=1.0 (lbs)||K=1.2 (lbs)|
Elements of Section
|Elements of Section - P5000T|
|Area of Section||0.897 in2 (5.8 cm2)|
|Axis 1-1||Axix 2-2|
|Moment of Inertia (I)||1.098 in4 (45.7 cm4)||0.433 in4 (18 cm4)|
|Section Modulus (S)||0.627 in3 (10.3 cm3)||0.533 in3 (8.7 cm3)|
|Radius of Gyration (r)||1.107 in (2.8 cm)||0.695 in (1.8 cm)|
- 10 feet: 10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
- 20 feet: 20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)
- Available with a tolerance of ±1/8" (3 mm). Request quote.
- Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.
- All beam and column load data pertains to carbon steel and stainless steel channels.
- Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
- Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
- Loads are based on 33 ksi steel cold formed to 42 ksi.
- Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
- Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
- For bearing loads, reference our Bearing Loads Page.
Materials & Finishes
Materials & Finishes - Standard:
- Pregalvanized (PG): Conforms to ASTM A653 SS GR 33, G90.
- Unistrut Defender (DF): Conforms to ASTM A1046 SS GR 33
- Hot Dip Galvanized (HG): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
- Perma-Green (GR): Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
- Perma-Gold (ZD): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
- Plain (PL): Conforms to ASTM A1011 SS GR 33
- Stainless Steel, Type 304 (SS): ASTM A240, Type 304 *
- Stainless Steel, Type 316 (ST): ASTM A240, Type 316 *
- Aluminum (EA): ASTM B221, Type 6063-T6 (Extruded) *
* These materials have different physical properties and performance characteristics. Please contact us for design support.
