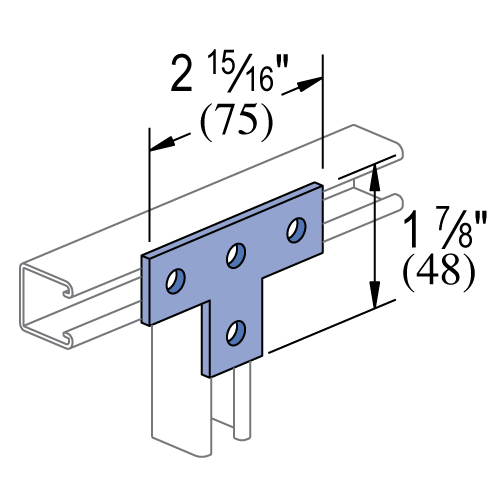

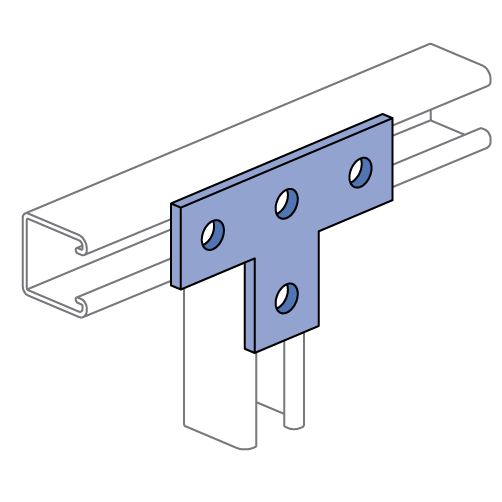

Unistrut P6031 - Fittings (13/16" Series)

Sale price$21.07
Finish:Electrogalvanized
Item Code:P6031EG
Quantity:

Features:

  • For use with 13/16" wide channel
  • Steel: ASTM A1011 SS GR 33
  • EG coated for corrosion protection



General Specifications

Standard Dimensions:

  • Hole Diameter:  9/32"  (7.1mm)
  • Hole Spacing (From End):  13/32"  (10.3mm)
  • Hole Spacing (On-Center):  1 1/16"  (27.0mm)
  • Width:  13/16"  (20.6mm)
  • Thickness:  1/8"  (3.2mm)


Materials & Finishes

Materials & Finishes:

  • Electrogalvanized (EG):  Conforms to ASTM B633, Type III SC1 or SC3



P6031 CUT SHEET PDF DOWNLOAD
