Standard Dimensions:
- Hole Diameter: 13/32" (10mm)
- Hole Spacing (From End): 5/8" (16mm)
- Hole Spacing (On Center): 1-1/2" (38mm)
- Width: 1-1/4" (32mm)
- Thickness: 3/16" (5mm)
Unistrut

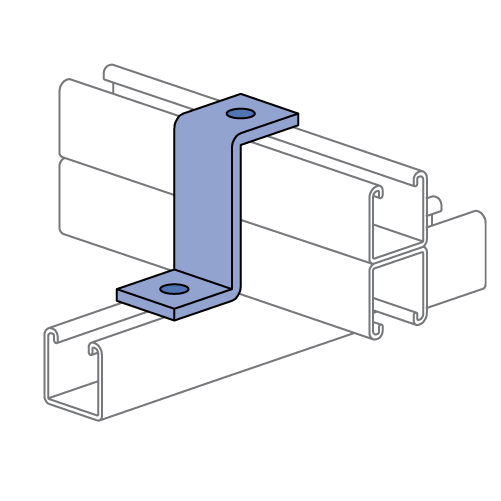

Unistrut P6453 - Fittings (13/16" Series)
Finish:Electrogalvanized
Item Code:P6453EG
Quantity:
Features:
- For use with 13/16" wide channel
- Holes for 3/8" fasteners
- EG coated for corrosion protection
Standard Dimensions
General Specifications - 13/16" System
Standard Dimensions:
- Hole Diameter: 9/32" (7.1mm)
- Hole Spacing (From End): 13/32" (10.3mm)
- Hole Spacing (On-Center): 1 1/16" (27.0mm)
- Width: 13/16" (20.6mm)
- Thickness: 1/8" (3.2mm)
Materials & Finishes - Fittings
Materials & Finishes - Standard:
- Base Metal: Steel conforms to ASTM A1011 SS GR 33, A1011 HSLAS GR 45, A36, A575, A576, or A635.
- Electrogalvanized (EG): Conforms to ASTM B633, Type III SC1
- Unistrut Defender (DF): Conforms to ASTM A1059
- Hot Dip Galvanized (HG): Conforms to ASTM A123 or A153
- Perma-Green (GR): Conforms to commercial standards for powder coating
- Perma-Gold (ZD): Conforms to ASTM B633, Type II SC1 or SC3
- Plain (PL): No finish
Materials & Finishes - Special Metals:
- Stainless Steel, Type 304 (SS): Conforms to ASTM A240 or A276, Type 304 *
- Stainless Steel, Type 316 (ST): Conforms to ASTM A240 or A276, Type 316 *
- Aluminum (AL): Conforms to ASTM B209, Type 1100F or 5052-H32 *
* These materials have different physical properties and performance characteristics. Please contact us for design support.
