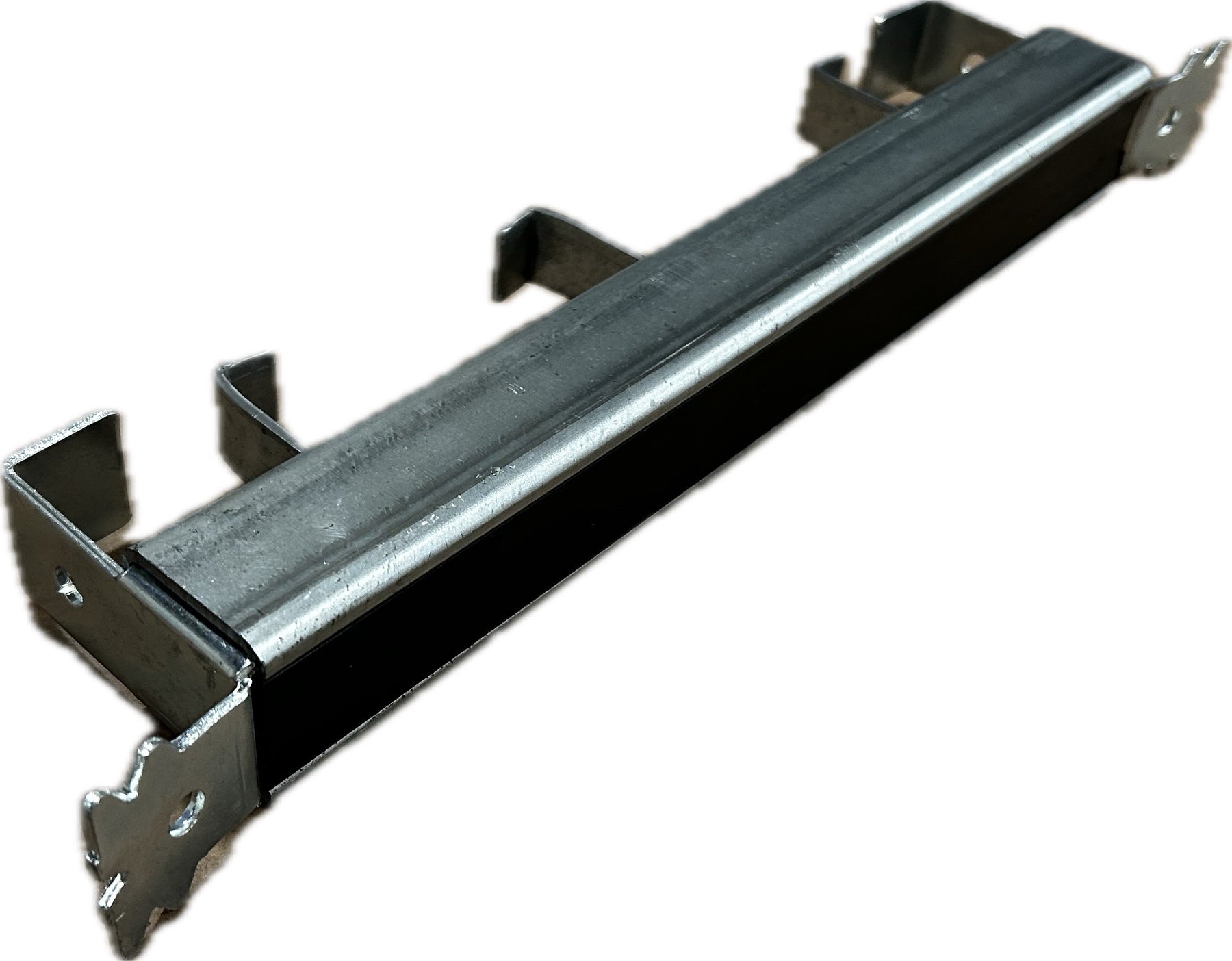

Unistrut P3253WCPG 12" Concrete Insert With Closure Strip & End Caps

Sale price$23.70
Finish:Pregalvanized Zinc
Quantity:
Unistrut's P3200 Series Concrete Insert is ideal for anchoring structures and supports to concrete. This product allows easy installation before the concrete is poured, and attachment anywhere along its length using 1-5/8" Fittings, Channel Nuts or other Unistrut products. It is perfect for applications that may need to be re-configured or re-anchored.


Features:

  • This product may be used for anchorage on ceilings, floors or walls. Being a pre-pour installation, it is ideal for applications with cracked concrete concerns and avoids the creation of Silica Dust during installation (see OSHA 29 CFR §1926.1153 and 29 CFR §1910.1053). It is also OPA approved for seismic bracing applications (reference pages 5-7 & 5-8).
  • Channel dimensions are 1 5/8" wide x 1 3/8" deep x 12 ga. thick. Embedment tabs are spaced at 8" O.C. and have an embedment depth of 2-7/8". The product ships assembled with End Caps and a Closure Strip to prevent concrete seepage into the channel, per the options below.
  • Up to 2,000 lbs capacity
  • Pre-Galvanized (PG) Finish

Specifications:

  • P1703 end cap utilized
  • Cold formed from 12 GA steel conforming to ASTM A1011 SS GR 33 or ASTM A653 GR 33.

Design Loads:

  • Design loads, where shown, are based on 3,000 PSI concrete, unless noted.
  • Safety factor = 3.0.
