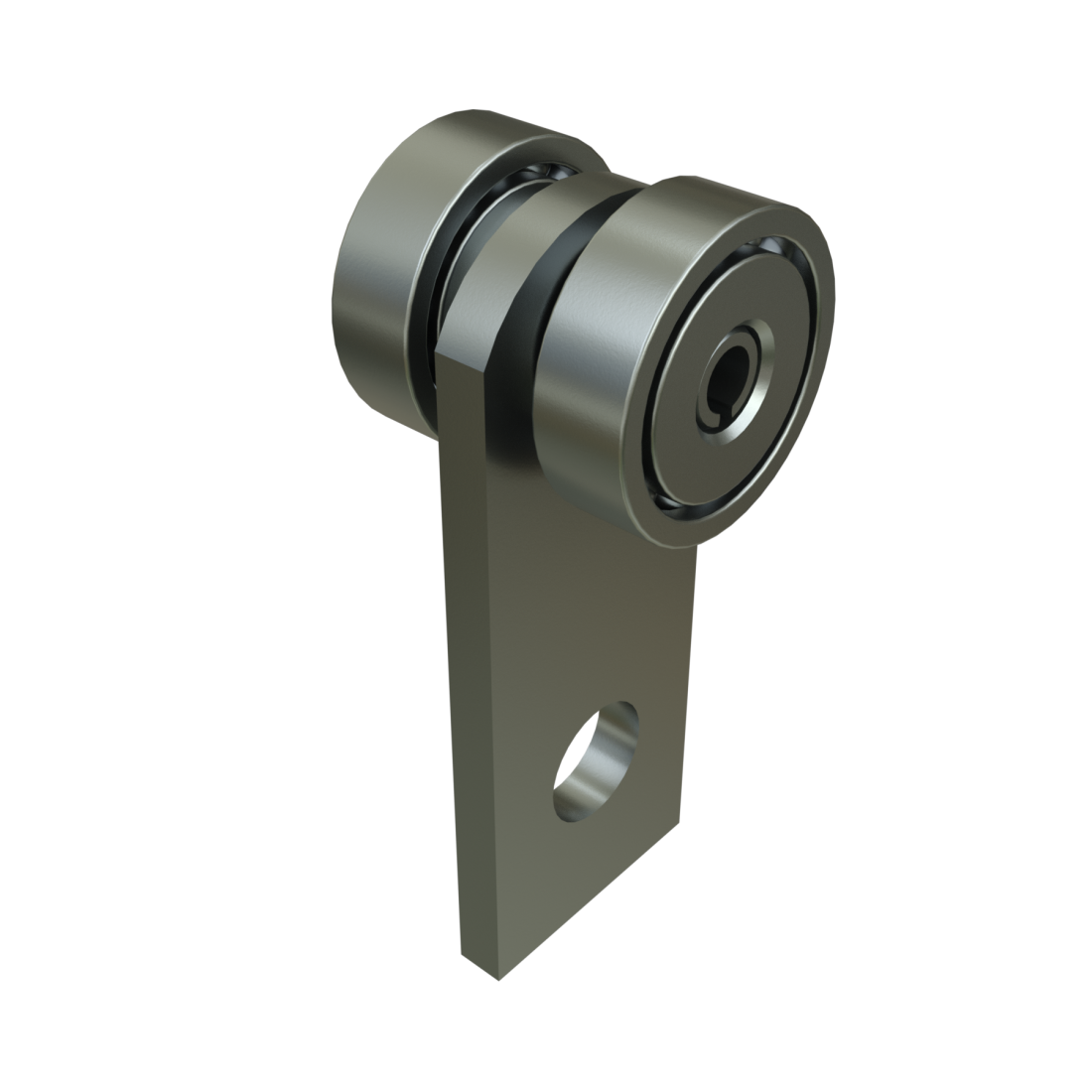

Unistrut P2949 Trolley
Unistrut P2949 - 2-Wheel Trolleys
Unistrut P2949 - 2-Wheel Trolleys

Unistrut

Unistrut P2949 - 2-Wheel Trolleys

$13.35
Finish:Electrogalvanized
Item Code:P2949
Order Size:Single Piece
Quantity:

Features:

  • Design Load: 150 - 437 lbs [0.67 - 1.94 kN] per table
  • Wheel bearings should not be lubricated
  • Mounting hole for 1/2" fastener



Design Loads

Design Loads - P2949
Feet Per Minute
(FPM)		 Rotations Per Minute
(RPM)		 Design Load in P1000
lbs (kN)
180 600  150  (0.67)
90 300 225  (1.00)
30
 100 437  (1.94)

Notes:

  1. Design loads only apply to Unistrut brand products. Look for "UNISTRUT" on the part.
  2. Safety factor = 2.5 based on the ultimate strength of the connection when mounted to 12 gauge channel.


General Specifications

Specifications:

  • Do not lubricate


Materials & Finishes

Materials & Finishes:

  • Electrogalvanized (EG)
  • Stainless Steel (SS)
  • "N" indicates Acetal wheels



Unistrut P2949 CUT SHEET PDF DOWNLOAD
