12 Gauge Solid Strut Channel is commonly used for trapeze supports, seismic bracing, ceiling grids, pipe, conduit, duct and cable tray supports, racks, and other general framing. For application examples, refer to our Application Showcase.


Features:

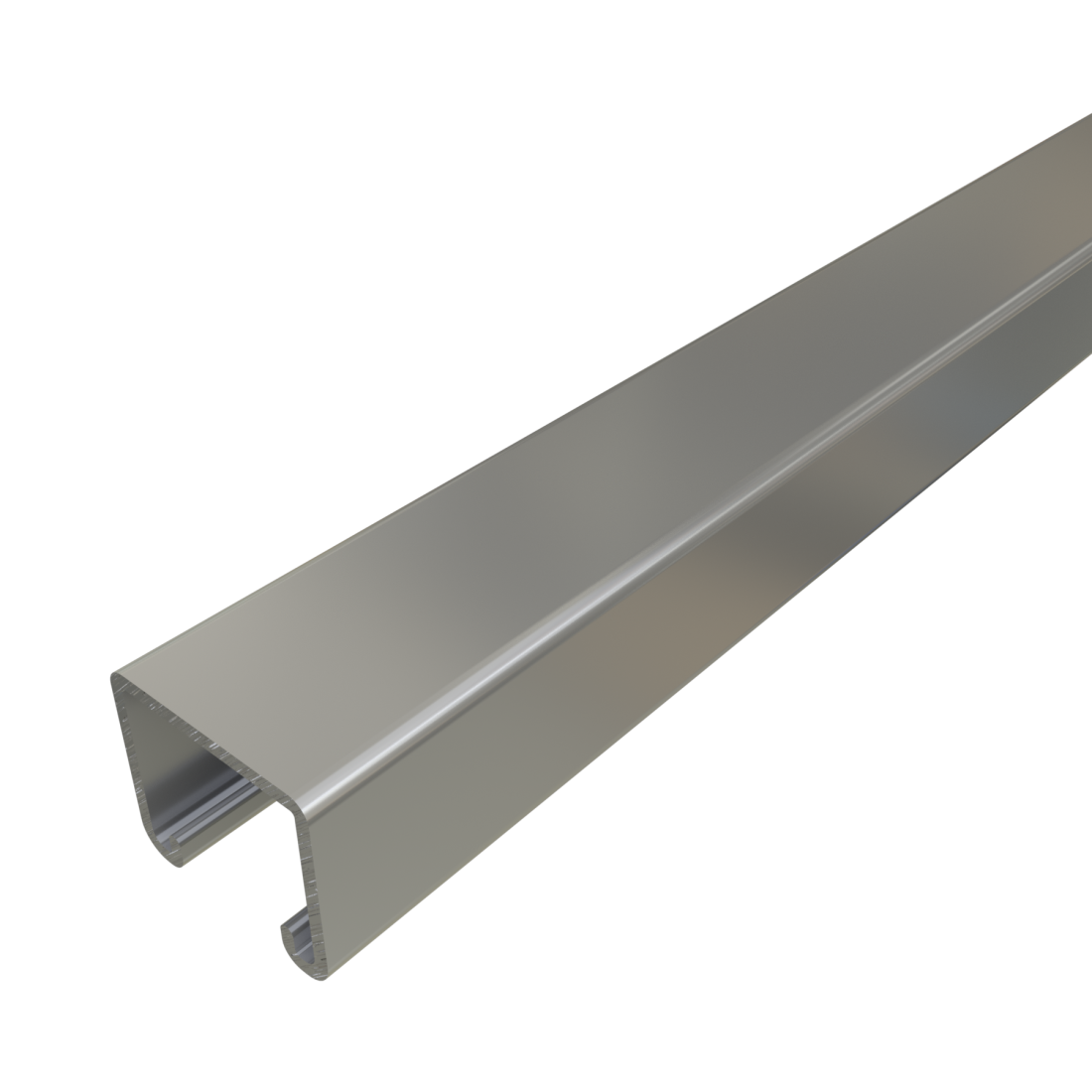

  • Product dimensions are 1 5/8" wide x 1 3/8" tall x 12 ga. thick, solid.
  • Punched holes are also available for ease of installation
  • This channel type provides a shorter alternative to its closest comparable, P1000.
  • UL and CSA listed
  • Made in the USA



Beam Loading

Beam Loading - P3000
Span
(in)		 Max Allow. Uniform Load
(lbs)		 Deflection at Uniform Load
(in)		 Uniform Loading at Deflection Lateral Bracing Reduction Factor
Span/180
(lbs)		 Span/240
(lbs)		 Span/360
(lbs)
24 1,280 0.07 1,280 1,280 1,280 1.00
36 850 0.15 850 850 580 0.96
48 640 0.26 640 490 330 0.91
60 510 0.41 420 310 210 0.88
72 430 0.59 290 220 150 0.84
84 370 0.81 210 160 110 0.82
96 320 1.05 160 120 80 0.79
108 280 1.30 130 100 60 0.77
120 260 1.66 100 80 50 0.75
144 210 2.32 70 50 40 0.70
168 180 3.15 50 40 30 0.66
192 160 4.18 40 30 NR 0.62
216 140 5.21 NR NR NR 0.58
240 130 6.64 NR NR NR 0.54
Note NR - Not Recommended
Refer to the General Specifications for loading information.

Column Loading

Column Loading - P3000
Unbraced
Height
(in)		 Allowable Load at Slot Face
(lbs)		 Max Column Load Applied at C.G.
K=0.65 (lbs) K=0.80 (lbs) K=1.0 (lbs) K=1.2 (lbs)
24 3,180 9,690 8,980 8,050 7,210
36 2,920 8,160 7,210 6,130 5,240
48 2,590 6,820 5,810 4,730 3,860
60 2,300 5,740 4,730 3,690 2,990
72 2,040 4,850 3,860 2,990 2,270
84 1,830 4,100 3,240 2,400 KL/r>200
96 1,650 3,530 2,770 1,840 KL/r>200
108 1,450 3,080 2,270 KL/r>200 KL/r>200
120 1,250 2,710 1,840 KL/r>200 KL/r>200
Refer to the General Specifications for loading information.

Elements of Section

Elements of Section - P3000
Area of Section 0.5 in2 (3.2 cm2)
Axis 1-1 Axix 2-2
Moment of Inertia (I) 0.12 in4 (5 cm4) 0.203 in4 (8.4 cm4)
Section Modulus (S) 0.153 in3 (2.5 cm3) 0.250 in3 (4.1 cm3)
Radius of Gyration (r) 0.489 in (1.2 cm) 0.638 in (1.6 cm)

General Specifications

Standard Lengths:

  • 10 feet:  10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
  • 20 feet:  20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)

Special Lengths:

Curved Channel:

  • Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.

Load Data:

  • All beam and column load data pertains to carbon steel and stainless steel channels.
  • Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
  • Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
  • Loads are based on 33 ksi steel cold formed to 42 ksi.
  • Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
  • Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
  • For bearing loads, reference our Bearing Loads Page.

Materials & Finishes

Materials & Finishes - Standard:

  • Pregalvanized (PG):  Conforms to ASTM A653 SS GR 33, G90.
  • Unistrut Defender (DF):  Conforms to ASTM A1046 SS GR 33
  • Hot Dip Galvanized (HG):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
  • Perma-Green (GR):  Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
  • Perma-Gold (ZD):  Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
  • Plain (PL):  Conforms to ASTM A1011 SS GR 33
Materials & Finishes - Special Metals:
  • Stainless Steel, Type 304 (SS):  ASTM A240, Type 304 *
  • Stainless Steel, Type 316 (ST):  ASTM A240, Type 316 *
  • Aluminum (EA):  ASTM B221, Type 6063-T6 (Extruded) *

* These materials have different physical properties and performance characteristics. Please contact us for design support.



P3000 Cut Sheet PDF DOWNLOAD
