| Elements of Section - P5000 | ||
|---|---|---|
| Area of Section | 0.897 in2 (5.8 cm2) | |
| Axis 1-1 | Axix 2-2 | |
| Moment of Inertia (I) | 1.098 in4 (45.7 cm4) | 0.433 in4 (18 cm4) |
| Section Modulus (S) | 0.627 in3 (10.3 cm3) | 0.533 in3 (8.7 cm3) |
| Radius of Gyration (r) | 1.107 in (2.8 cm) | 0.695 in (1.8 cm) |
Unistrut

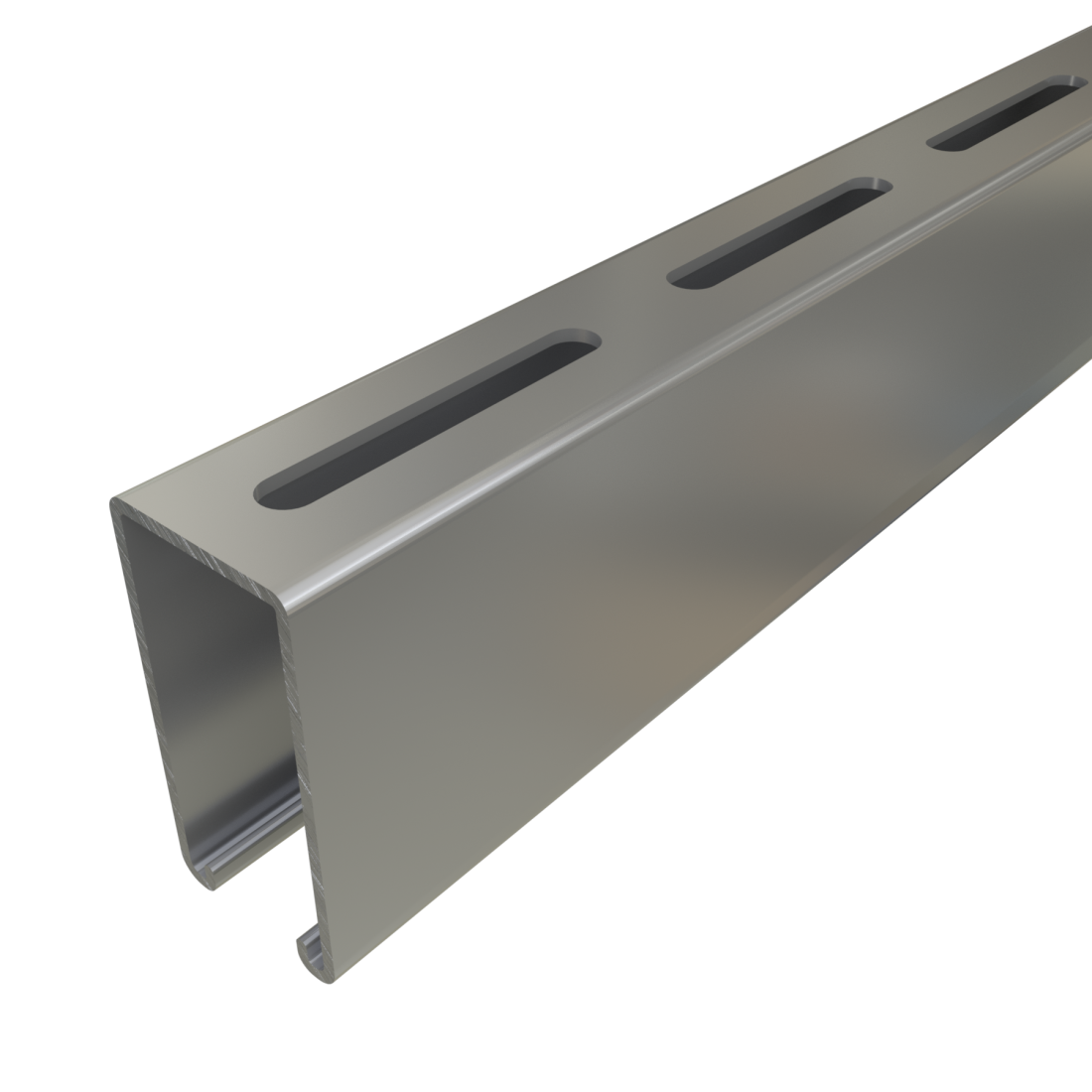

Unistrut P5000SL - 1-5/8" x 3-1/4", 12 Gauge Metal Framing Strut, SL Slots
Length:10'
Finish:Perma-Green® III
Quantity:
CUT TO A CUSTOM LENGTH? MAY SAVE ON SHIPPING
HOW WOULD YOU LIKE IT CUT?
Some cutting jobs allow us to use ground shipping rather than LTL, yielding significant freight savings. A customer service associate will contact you to confirm the cut list and shipping and freight costs prior to finalizing your order. eg - 4 cuts per stick x 5ft per section
12 Gauge Slotted Strut Channel P5000SL has long slots on the back side for use with 3/8" threaded rod and fasteners. These slots can eliminate the need for field drilling and allow adjustability when installing. The slots are 3" long with 1" spacing.
Features:

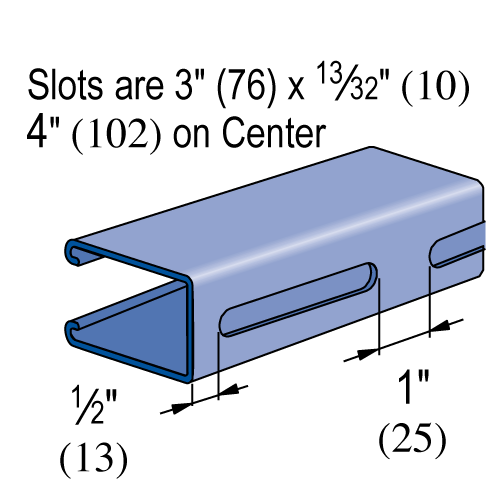

- Product dimensions are 1 5/8" wide x 3 1/4" tall x 12 ga. thick; with long slots.
- The slots are 13/32" wide x 3" long, 4" on center and sized for use with 3/8" threaded rod or fasteners.
- Our P5000SL is available in the following finishes: Pre-Galvanized (PG), Hot-Dip Galvanized (HG), Plain (PL), Green (GR), Zinc Dichromate (ZD) and Stainless Steel (SS).
- Made in the USA
Elements of Section
General Specifications
Standard Lengths:
- 10 feet: 10' or 10’ 1/8” (3.05m) ± 1/8" (3 mm)
- 20 feet: 20' or 20’ 3/8” (6.11m) ± 1/8" (3 mm)
Special Lengths:
- Available with a tolerance of ±1/8" (3 mm). Request quote.
Curved Channel:
- Many Unistrut channel sections can be supplied with a curve. Click here for our ordering form, specifications, and instructions.
Load Data:
- All beam and column load data pertains to carbon steel and stainless steel channels.
- Load tables apply only to UNISTRUT brand channel. Look for "UNISTRUT" on the product.
- Load tables and charts are constructed to be in accordance with the SPECIFICATION FOR THE DESIGN OF COLD-FORMED STEEL STRUCTURAL MEMBERS 2007 EDITION published by the AMERICAN IRON AND STEEL INSTITUTE USING ASD METHOD.
- Loads are based on 33 ksi steel cold formed to 42 ksi.
- Safety Factor to Yield Strength is 1.67 for Beam Loads and 1.80 for Column Loads.
- Beam loads are based on a simple beam and are given as a total uniform load (W) in pounds. For proper calculation procedures, refer to our Beam Load Calculation Guide under Resources.
- For bearing loads, reference our Bearing Loads Page.
Materials & Finishes
Materials & Finishes - Standard:
- Pregalvanized (PG): Conforms to ASTM A653 SS GR 33, G90.
- Unistrut Defender (DF): Conforms to ASTM A1046 SS GR 33
- Hot Dip Galvanized (HG): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM A123
- Perma-Green (GR): Steel conforms to ASTM A1011 SS GR 33, E-Coat finish
- Perma-Gold (ZD): Steel conforms to ASTM A1011 SS GR 33, Finish conforms to ASTM B633, Type II SC3
- Plain (PL): Conforms to ASTM A1011 SS GR 33
- Stainless Steel, Type 304 (SS): ASTM A240, Type 304 *
- Stainless Steel, Type 316 (ST): ASTM A240, Type 316 *
- Aluminum (EA): ASTM B221, Type 6063-T6 (Extruded) *
* These materials have different physical properties and performance characteristics. Please contact us for design support.
